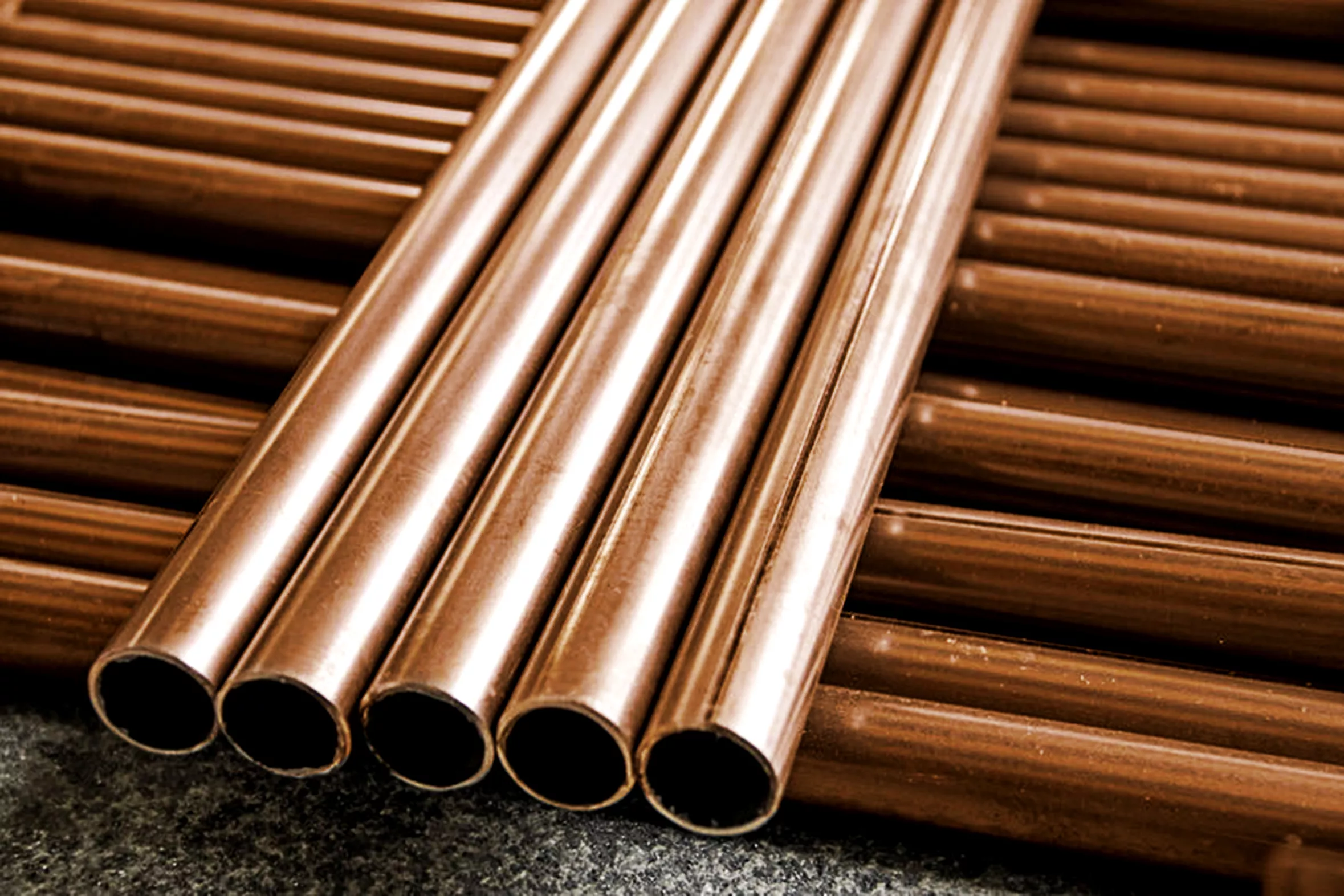

What Are Beryllium Copper Pipes?
Beryllium Copper Pipes are copper alloy pipes containing a controlled amount of beryllium, offering a combination of high strength, hardness, corrosion resistance, electrical conductivity and wear resistance. Beryllium copper is available in different grades and tempers, with UNS C17200 being one of the commonly used grades for high-performance applications.
Beryllium copper pipes are known for their high strength-to-weight ratio, excellent fatigue resistance, good electrical and thermal conductivity, corrosion resistance and non-sparking properties. These characteristics make them suitable for applications where both mechanical strength and conductivity are required.
These pipes are used in electrical and electronic equipment, aerospace components, instrumentation, oil and gas equipment, precision engineering, chemical processing and specialized industrial systems. The appropriate grade, temper, dimensions and properties are selected according to the specific application and operating conditions.
Kamal Steels is a reliable Beryllium Copper Pipes Exporter and Supplier and in India, supplying beryllium copper pipes in different grades, sizes, wall thicknesses and lengths according to customer and project requirements. We also cater to international requirements with suitable export packaging and documentation.
Need The Best Price For Beryllium Copper Pipes?
Share your grade, size, wall thickness and quantity and our team will respond with stock availability, pricing and delivery details.
Certifications & Compliance
- ISO 9001:2015 Certified
- ISO 14001 Certified
- ISO 45001 Certified
- PED Approved Materials
- MSME Registered Company
- IEC Export Certification
- GST Registered Business
Beryllium Copper Pipe Specifications
| Specification | Details |
|---|---|
| Product Name | Beryllium Copper Pipes |
| Grades | C17200, C17300, C17500 |
| Type | Seamless / Welded |
| Size Range | 6 mm to 610 mm |
| Thickness | SCH 5 to SCH XXS |
| Length | Single Random / Double Random |
| Standards | ASTM B196, ASTM B197, ASME SB |
| End Finish | Plain End, Beveled End, Threaded End |
Beryllium Copper Pipes Weight Chart
The following table provides the approximate weight of Beryllium Copper pipes based on Schedule 40 dimensions. Actual weight may vary depending on the alloy grade (C17200, C17500, etc.), manufacturing standard, wall thickness, and dimensional tolerances.
| Nominal Pipe Size (NPS) | Outside Diameter (mm) | Wall Thickness (mm) | Approx. Weight (kg/m) |
|---|---|---|---|
| 1/8" | 10.3 | 1.73 | 0.41 |
| 1/4" | 13.7 | 2.24 | 0.69 |
| 3/8" | 17.1 | 2.31 | 0.98 |
| 1/2" | 21.3 | 2.77 | 1.45 |
| 3/4" | 26.7 | 2.87 | 1.95 |
| 1" | 33.4 | 3.38 | 2.97 |
| 1-1/4" | 42.2 | 3.56 | 4.06 |
| 1-1/2" | 48.3 | 3.68 | 4.85 |
| 2" | 60.3 | 3.91 | 6.48 |
| 2-1/2" | 73.0 | 5.16 | 10.11 |
| 3" | 88.9 | 5.49 | 12.77 |
| 4" | 114.3 | 6.02 | 17.51 |
| 6" | 168.3 | 7.11 | 31.01 |
| 8" | 219.1 | 8.18 | 46.87 |
| 10" | 273.0 | 9.27 | 65.31 |
| 12" | 323.9 | 10.31 | 84.13 |
Note: The above weights are approximate for Beryllium Copper Schedule 40 pipes and are provided for reference only. Actual weight depends on the alloy grade (C17200, C17500, etc.), pipe schedule (SCH 5S to SCH XXS), manufacturing tolerances, and applicable ASTM/ASME specifications.
Beryllium Copper Pipe Size Chart & Dimensions
Beryllium Copper pipes are available in multiple sizes, wall thicknesses and schedules suitable for industrial, electrical and engineering applications.
| Nominal Pipe Size | Outside Diameter (OD) | SCH 40 Wall Thickness | SCH 80 Wall Thickness |
|---|---|---|---|
| 1/8" | 10.3 mm | 1.73 mm | 2.41 mm |
| 1/4" | 13.7 mm | 2.24 mm | 3.02 mm |
| 1/2" | 21.3 mm | 2.77 mm | 3.73 mm |
| 1" | 33.4 mm | 3.38 mm | 4.55 mm |
| 2" | 60.3 mm | 3.91 mm | 5.54 mm |
| 4" | 114.3 mm | 6.02 mm | 8.56 mm |

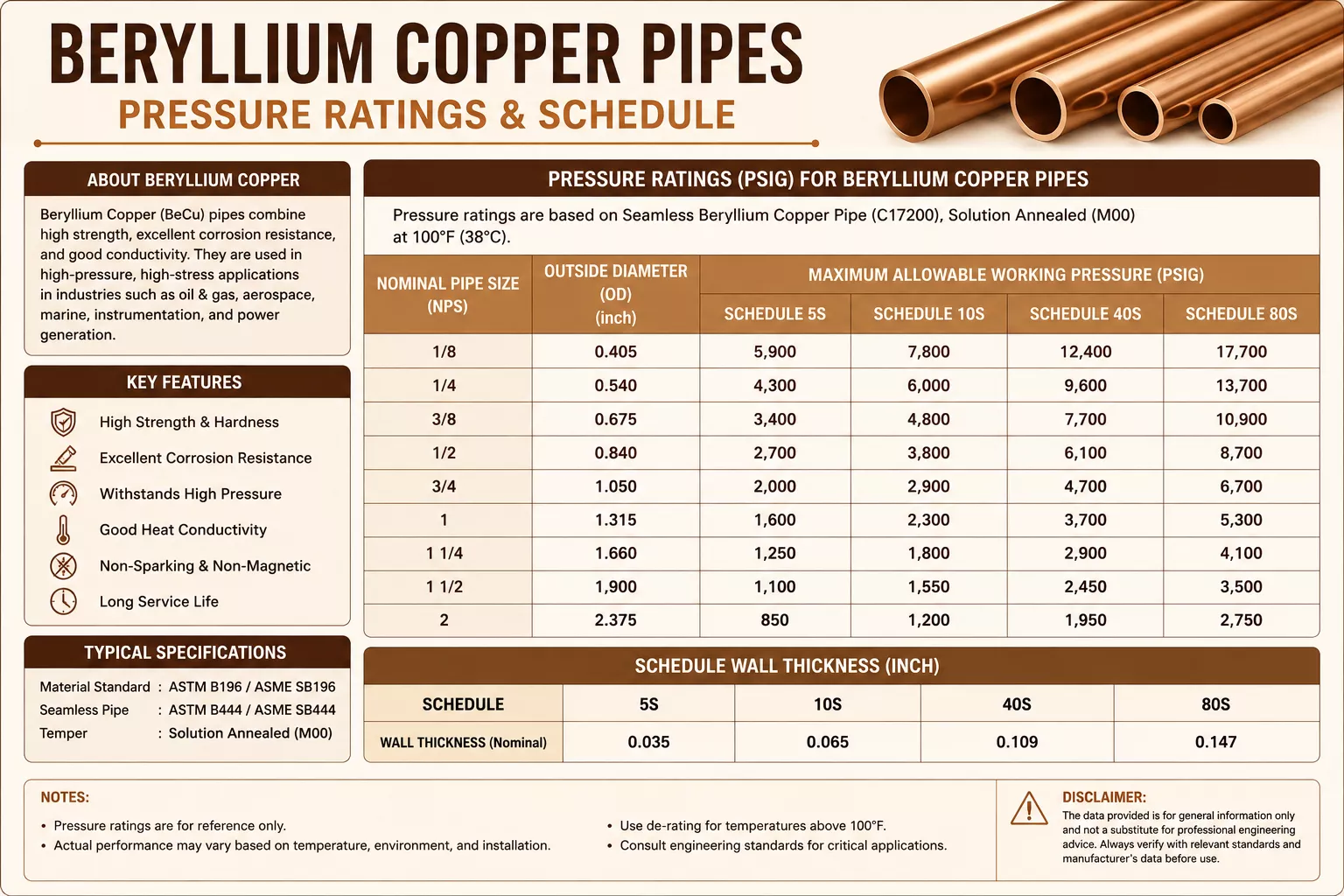

Beryllium Copper Pipes Pressure Ratings & Schedule
Beryllium Copper pipes are manufactured in a wide range of pipe schedules to meet the requirements of low, medium, and high-pressure applications. The allowable working pressure depends on the nominal pipe size (NPS), wall thickness (schedule), operating temperature, alloy grade (C17200, C17500, etc.), and the applicable ASME design code.
| Pipe Schedule | Wall Thickness | Pressure Rating | Typical Applications |
|---|---|---|---|
| SCH 5S | Extra Light | Low Pressure | Instrumentation, Heat Exchangers, Cooling Systems |
| SCH 10S | Light | Low to Medium Pressure | Hydraulic Lines, Chemical Processing |
| SCH 20 | Medium Light | Medium Pressure | Industrial Utility Piping |
| SCH 40 / STD | Standard | Medium to High Pressure | Marine, Oil & Gas, Aerospace Components |
| SCH 60 | Heavy | High Pressure | Power Plants, Offshore Installations |
| SCH 80 / XS | Extra Strong | High Pressure | Hydraulic Systems, High Pressure Process Piping |
| SCH 120 | Very Heavy | Very High Pressure | Defense, Aerospace, Critical Industrial Systems |
| SCH 160 | Extra Heavy | Very High Pressure | Severe Service & High Wear Applications |
| SCH XXS | Double Extra Strong | Maximum Pressure Rating | Extreme Pressure & Heavy-Duty Industrial Applications |
Note: The pressure ratings shown above are for general reference only. The actual allowable working pressure of Beryllium Copper pipes depends on the pipe size (NPS), wall thickness, alloy grade, operating temperature, and the applicable design code such as ASME B31.3. For precise pressure ratings, refer to the relevant ASTM/ASME standards or consult our technical team.
Types of Beryllium Copper Pipes
- Beryllium Copper Seamless Pipes
- Beryllium Copper Welded Pipes
- Beryllium Copper ERW Pipes
- Beryllium Copper Precision Pipes
- Beryllium Copper Capillary Pipes
- Beryllium Copper Instrumentation Pipes
Beryllium Copper Pipe Equivalent Grades
| Material | UNS Number | Werkstoff No. |
|---|---|---|
| Beryllium Copper 17200 | C17200 | 2.1247 |
| Beryllium Copper 17300 | C17300 | 2.1245 |
| Beryllium Copper 17500 | C17500 | 2.0850 |
Why Use Beryllium Copper Instead of Brass or Copper?
Beryllium Copper is often selected over standard copper and brass when applications require a combination of high strength, excellent conductivity, wear resistance and long-term durability. While copper offers outstanding electrical conductivity and brass provides good machinability, Beryllium Copper delivers superior mechanical performance without sacrificing conductivity, making it ideal for demanding industrial and engineering applications.
| Property | Beryllium Copper | Copper | Brass |
|---|---|---|---|
| Mechanical Strength | Excellent | Moderate | Good |
| Electrical Conductivity | High | Excellent | Moderate |
| Thermal Conductivity | High | Excellent | Good |
| Wear Resistance | Excellent | Moderate | Good |
| Fatigue Resistance | Excellent | Low | Moderate |
| Corrosion Resistance | Excellent | Good | Good |
| Non-Sparking Properties | Yes | No | No |
| Suitable for Critical Applications | Excellent | Limited | Moderate |
Due to its exceptional combination of strength, conductivity, fatigue resistance and corrosion resistance, Beryllium Copper Pipes are widely used in aerospace, electrical systems, precision engineering, marine equipment, oil & gas facilities and industrial applications where conventional copper or brass may not provide sufficient performance.
Chemical Composition of Beryllium Copper Pipe
| Grade | Copper (%) | Beryllium (%) | Nickel/Cobalt (%) | Other Elements |
|---|---|---|---|---|
| C17200 | Balance | 1.80 – 2.00 | 0.20 Min | Co, Ni, Fe Controlled |
| C17300 | Balance | 1.85 – 2.00 | 0.20 Min | Lead Added for Machinability |
| C17500 | Balance | 0.40 – 0.70 | Nickel Added | High Conductivity Alloy |
Beryllium Copper Pipe Standards
| ASTM Standards | ASME Standards |
|---|---|
| ASTM B643 | ASME SB643 |
| ASTM B937 | ASME SB937 |
Mechanical Properties of Beryllium Copper Pipe
Tensile Strength
Beryllium Copper pipes provide high tensile strength suitable for demanding industrial and engineering applications.
Yield Strength
These pipes offer excellent yield strength and mechanical stability under stress and pressure conditions.
Elongation
Good elongation properties ensure ductility and ease of fabrication during installation and manufacturing.
| Grade | Tensile Strength (MPa, Min) | Yield Strength (MPa, Min) | Elongation (% Min) |
|---|---|---|---|
| C17200 | 1140 | 965 | 4% |
| C17300 | 1100 | 895 | 5% |
| C17500 | 690 | 550 | 10% |
Features of Beryllium Copper Pipes
- Excellent Electrical Conductivity: Beryllium Copper pipes provide outstanding electrical conductivity, making them suitable for electrical and electronic applications.
- High Strength and Hardness: These pipes offer excellent mechanical strength and hardness while maintaining good ductility and machinability.
- Superior Wear Resistance: Beryllium Copper pipes resist wear, abrasion and fatigue, ensuring long service life in demanding applications.
- Good Corrosion Resistance: They provide reliable resistance against corrosion in industrial and marine environments.
- Excellent Thermal Conductivity: These pipes efficiently transfer heat, making them ideal for heat transfer and thermal management systems.
- Good Fabrication and Machinability: Beryllium Copper pipes can be machined, fabricated and welded for precision industrial applications.
- High Fatigue Resistance: They maintain structural integrity under repeated stress and vibration conditions.
- Long Operational Life: Due to excellent durability and resistance properties, these pipes offer reliable long-term industrial performance.
Applications of Beryllium Copper Pipes
Beryllium Copper pipes are widely used in industries requiring high strength, electrical conductivity, wear resistance and precision performance.
Electrical Industry
Used in electrical systems and conductive applications requiring high conductivity and durability.
Aerospace Industry
Applied in aerospace components where lightweight strength and fatigue resistance are essential.
Precision Engineering
Ideal for precision instruments, tools and mechanical systems requiring dimensional stability.
Oil & Gas Industry
Suitable for industrial systems exposed to pressure, vibration and corrosive operating conditions.
Industrial Machinery
Used in heavy-duty machinery and equipment requiring wear resistance and long operational life.
Heat Exchanger Systems
Preferred for heat transfer systems because of excellent thermal conductivity properties.
Marine Industry
Used in marine engineering applications requiring corrosion resistance and durability.
Electronics Industry
Suitable for electronic and conductive applications where reliable electrical performance is critical.
Industries Using Beryllium Copper Pipes
Kamal Steels supplies Beryllium Copper pipes to industries requiring excellent conductivity, strength, wear resistance and long-term reliability.
Electrical Industry
Beryllium Copper pipes are widely used in electrical applications because of excellent conductivity and strength.
Aerospace Industry
Used in aerospace systems requiring lightweight materials with high fatigue resistance.
Engineering Industry
Suitable for precision engineering, fabrication and industrial mechanical systems.
Oil & Gas Industry
Applied in industrial operations requiring durable and wear-resistant piping solutions.
Manufacturing Industry
Used in production equipment and machinery requiring high mechanical performance.
Heat Transfer Industry
Widely used in heat exchanger and thermal management systems.
Electronics Industry
Preferred for conductive and precision electronic component applications.
Marine Industry
Suitable for marine applications requiring corrosion resistance and durability.
Frequently Asked Questions
Beryllium Copper Pipes are high-strength copper alloy pipes containing beryllium, offering excellent electrical conductivity, thermal conductivity, corrosion resistance and wear resistance. They are widely used in aerospace, marine, electrical and industrial applications.
C17200 Beryllium Copper Pipes provide higher strength and hardness, while C17300 Beryllium Copper Pipes offer improved machinability. Both grades deliver excellent conductivity and corrosion resistance.
Yes, Beryllium Copper Pipes offer outstanding corrosion resistance in marine, industrial and chemical environments, making them suitable for demanding applications.
Beryllium Copper Pipes are commonly manufactured according to ASTM B171, ASTM B441 and relevant ASME standards to ensure quality, reliability and dimensional accuracy.
Beryllium Copper Pipes are widely used in aerospace, electrical, electronics, marine, oil and gas, defense, chemical processing and precision engineering industries.
Yes, Kamal Steels supplies seamless, welded and custom-fabricated Beryllium Copper Pipes in various grades, dimensions and specifications.
Beryllium Copper Pipes are available in a wide range of diameters, wall thicknesses and lengths, including custom sizes to meet project requirements.
Yes, we provide Mill Test Certificates (MTC) as per EN 10204 3.1 along with inspection reports, test certificates and complete material traceability documentation.
Yes, Beryllium Copper Pipes are suitable for heat exchangers and thermal transfer systems due to their excellent thermal conductivity, corrosion resistance and mechanical strength.
The price of Beryllium Copper Pipes depends on grade, size, wall thickness, quantity and market conditions. Contact Kamal Steels for the latest pricing, stock availability and a customized quotation.
