Stainless Steel 316Ti Seamless Pipes
What is Stainless Steel 316Ti Seamless Pipe?

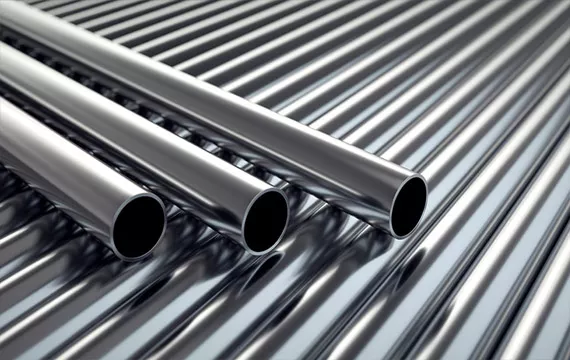

Stainless Steel 316Ti Seamless Pipes are manufactured from titanium-stabilized austenitic stainless steel Grade 316Ti and are designed for industrial applications requiring corrosion resistance, mechanical strength and reliable performance during elevated-temperature service. The addition of titanium helps stabilize the material against chromium carbide precipitation during prolonged heating, making SS 316Ti suitable for selected applications involving welding and thermal exposure.
Kamal Steels supplies Stainless Steel 316Ti Seamless Pipes in a wide range of sizes, schedules, wall thicknesses, lengths and finishes according to applicable specifications and customer requirements. Also identified as UNS S31635 and EN 1.4571, SS 316Ti combines the corrosion resistance of the 316 stainless steel family with titanium stabilization for demanding process, chemical, petrochemical, marine and high-temperature industrial services.
Table of Contents
- SS 316Ti Seamless Pipe Specifications
- SS 316Ti Seamless Pipe Size Chart
- SS 316Ti Seamless Pipe Weight Chart
- SS 316Ti Seamless Pipe Schedule Chart
- ASTM A312 TP316Ti Seamless Pipe
- SS 316Ti Seamless Pipe Chemical Composition & Mechanical Properties
- SS 316Ti Seamless Pipe vs Welded Pipe
- SS 316Ti Seamless Pipe Applications & Industries
- Frequently Asked Questions
SS 316Ti Seamless Pipe Specifications
| Specification | Details |
|---|---|
| Product Name | Stainless Steel 316Ti Seamless Pipe |
| Grade | SS 316Ti / Type 316Ti |
| UNS | S31635 |
| EN Grade | 1.4571 |
| Material Type | Titanium-Stabilized Austenitic Stainless Steel |
| Manufacturing Process | Seamless |
| Product Standard | ASTM A312 |
| ASME Specification | ASME SA312 |
| Size Range | 1/8" to 24" and above as required |
| Schedule | 5S, 10S, 40S, 80S, 160 and other schedules |
| Wall Thickness | As per applicable schedule or specified requirement |
| Length | Random, Double Random or Fixed Length |
| End Type | Plain End, Bevelled End or Threaded End as required |
| Surface Finish | Pickled & Passivated, Annealed, Bright Annealed or Polished |
| Heat Treatment | Solution Annealed and Rapidly Cooled as specified by the applicable standard |
| Testing | Hydrostatic, PMI, Ultrasonic, Flattening, Flaring and other applicable tests |
| Inspection | Third Party Inspection available as required |
| Certification | EN 10204 3.1 / Material Test Certificate (MTC) |
| Packaging | Bundles, Wooden Cases, Wooden Boxes, Plastic End Caps and Export Packing |
SS 316Ti Seamless Pipe Size Chart
Stainless Steel 316Ti Seamless Pipes are available in a broad range of nominal pipe sizes for different industrial piping requirements. The required outside diameter and wall thickness depend on the application, pressure, temperature, flow conditions and applicable piping standard.
| Nominal Pipe Size | Outside Diameter | Common Schedules |
|---|---|---|
| 1/2 Inch | 21.3 mm | SCH 5S, 10S, 40S, 80S |
| 1 Inch | 33.4 mm | SCH 5S, 10S, 40S, 80S |
| 2 Inch | 60.3 mm | SCH 5S, 10S, 40S, 80S, 160 |
| 4 Inch | 114.3 mm | SCH 5S, 10S, 40S, 40, 80 |
| 6 Inch | 168.3 mm | SCH 5S, 10S, 40, 80 |
| 8 Inch | 219.1 mm | SCH 10S, 40, 80 |
Other sizes, outside diameters and wall thicknesses can be supplied based on project specifications. Buyers should confirm the required dimensions and tolerances according to the applicable standard before ordering.
SS 316Ti Seamless Pipe Weight Chart
The weight of Stainless Steel 316Ti Seamless Pipe depends mainly on its outside diameter, wall thickness, pipe length and material density. Heavier schedules have greater wall thickness and therefore higher weight per metre.
| Pipe Size | Schedule | Approx. Wall Thickness | Approx. Weight |
|---|---|---|---|
| 1 Inch | SCH 40S | 3.38 mm | Approx. 2.5 kg/m |
| 2 Inch | SCH 40S | 3.91 mm | Approx. 5.5 kg/m |
| 3 Inch | SCH 40S | 5.49 mm | Approx. 10.3 kg/m |
| 4 Inch | SCH 40S | 6.02 mm | Approx. 14.6 kg/m |
The values shown are indicative. Actual pipe weight may vary according to dimensional tolerances, manufacturing requirements and the applicable dimensional standard.
SS 316Ti Seamless Pipe Schedule Chart
Pipe schedules indicate the wall thickness of a pipe for a particular nominal pipe size. Stainless Steel 316Ti Seamless Pipes can be supplied in different schedules depending on pressure, temperature and design requirements.
| Schedule | Typical Application |
|---|---|
| SCH 5S | Light-wall service and selected low-pressure applications |
| SCH 10S | General industrial and process piping |
| SCH 40S | General industrial and pressure piping |
| SCH 80S | Higher wall thickness and demanding pressure service |
| SCH 160 | Selected high-pressure and heavy-wall applications |
ASTM A312 TP316Ti Seamless Pipe
ASTM A312 TP316Ti Seamless Pipe is manufactured from Type 316Ti stainless steel for applications requiring corrosion resistance and suitable performance in elevated-temperature environments. The specification covers seamless, welded and heavily cold-worked austenitic stainless steel pipe intended for general corrosive service and high-temperature applications.
Stainless Steel 316Ti Seamless Pipes can also be supplied to the corresponding ASME requirements where specified by the applicable project or engineering code. The required grade, dimensions, heat treatment, testing and certification should be confirmed before procurement.
SS 316Ti Seamless Pipe Chemical Composition & Mechanical Properties
Stainless Steel 316Ti is an austenitic chromium-nickel-molybdenum stainless steel with titanium stabilization. Its composition is designed to provide corrosion resistance while maintaining useful mechanical properties under demanding service conditions.
| Element | Typical / Maximum Requirement |
|---|---|
| Chromium | Approx. 16.0–18.0% |
| Nickel | Approx. 10.0–14.0% |
| Molybdenum | Approx. 2.0–3.0% |
| Carbon | Maximum 0.08% |
| Manganese | Maximum 2.00% |
| Silicon | Maximum 1.00% |
| Titanium | Specified for stabilization |
Mechanical properties such as tensile strength, yield strength and elongation depend on the applicable product specification and material condition. Testing and acceptance requirements should therefore be confirmed against the specified standard and purchase requirements.
SS 316Ti Seamless Pipe vs Welded Pipe
Both seamless and welded Stainless Steel 316Ti Pipes can be used in industrial applications, but their manufacturing processes are different. Seamless pipes are produced from a solid billet without a longitudinal weld seam, whereas welded pipes are formed from stainless steel plate or strip and joined along the seam.
| Feature | SS 316Ti Seamless Pipe | SS 316Ti Welded Pipe |
|---|---|---|
| Manufacturing | Produced without a longitudinal weld | Produced by forming and welding strip or plate |
| Wall Thickness | Suitable for a wide range of wall thicknesses | Available in various wall thicknesses |
| Typical Selection | Selected for specified pressure and demanding services | Often selected for larger diameters and fabrication requirements |
| Cost | Generally higher depending on size and specification | Can be more economical for suitable applications |
The choice between seamless and welded pipe should be based on the applicable specification, diameter, wall thickness, operating conditions, fabrication requirements and project design criteria.
SS 316Ti Seamless Pipe Applications & Industries
Stainless Steel 316Ti Seamless Pipes are used across industries where corrosion resistance, titanium stabilization and reliable performance under demanding service conditions are required. Common applications include process piping, equipment connections and fluid-handling systems.
Chemical Processing
Industry: Chemical Processing
Application: Process piping, chemical fluid handling and equipment connections.
Petrochemical
Industry: Petrochemical
Application: Process lines, plant utilities and corrosive fluid service.
Pharmaceutical
Industry: Pharmaceutical
Application: Process piping, utility lines and corrosion-resistant fluid handling.
Power Generation
Industry: Power Generation
Application: Process systems, utility piping and selected high-temperature services.
Marine & Offshore
Industry: Marine & Offshore
Application: Fluid transfer, utility systems and corrosion-resistant piping applications.
Industrial Engineering
Industry: Industrial Engineering
Application: Equipment fabrication, process piping and general engineering systems.
Frequently Asked Questions
Stainless Steel 316Ti Seamless Pipes are titanium-stabilized austenitic stainless steel pipes manufactured without a welded seam. They offer excellent corrosion resistance, superior weldability and enhanced performance in elevated-temperature applications.
SS 316Ti contains titanium, which stabilizes the material and reduces the risk of intergranular corrosion after welding or prolonged exposure to high temperatures. Standard SS 316 does not contain this titanium addition.
Titanium combines with carbon to prevent chromium carbide precipitation during welding and heat exposure. This improves resistance to sensitization and intergranular corrosion while enhancing high-temperature performance.
ASTM A312 TP316Ti covers seamless, welded, and heavily cold-worked austenitic stainless steel pipes intended for high-temperature and corrosive service applications.
Stainless Steel 316Ti is designated as UNS S31635 and Werkstoff Number (WNR) 1.4571. It is also commonly identified by the EN grade X6CrNiMoTi17-12-2.
SS 316Ti Seamless Pipes are widely used in petrochemical plants, chemical processing industries, power generation facilities, heat exchangers, marine applications, offshore platforms, pharmaceutical plants and food processing industries.
Seamless pipes have no welded joints, providing better structural integrity, uniform strength, and improved pressure resistance. This makes them ideal for critical high-pressure and high-temperature applications.
SS 316Ti Seamless Pipes offer excellent oxidation resistance, creep strength and structural stability at elevated temperatures, making them suitable for long-term high-temperature service conditions.
Yes. The molybdenum content in SS 316Ti provides excellent resistance to pitting and crevice corrosion in chloride-containing environments, making these pipes suitable for marine and offshore applications.
Kamal Steels supplies premium-quality ASTM A312 TP316Ti Seamless Pipes with Mill Test Certificates (MTC), third-party inspection reports, competitive pricing, ready stock availability and worldwide delivery to meet diverse industrial requirements.
