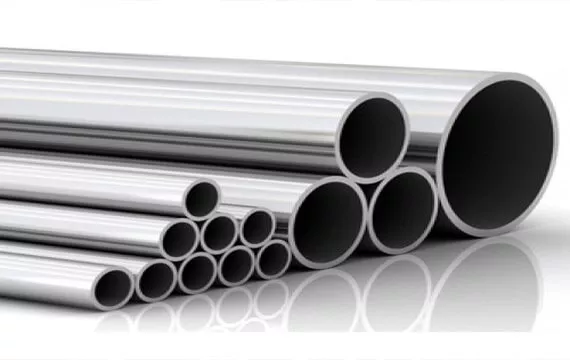

Stainless Steel 317 Welded Pipes
Stainless Steel 317 Welded Pipe Manufacturer & Stockist in India
Chemical processing industries often require piping materials capable of withstanding aggressive acids and chloride-rich environments where conventional stainless steel grades may not provide sufficient corrosion resistance. Kamal Steels manufactures and stocks Stainless Steel 317 Welded Pipes engineered for such demanding applications. Manufactured in accordance with ASTM A312 and ASME SA312 standards using Stainless Steel 317 (UNS S31700 / WNR 1.4449), our welded pipes deliver exceptional resistance to pitting, crevice corrosion and chemical attack while maintaining excellent mechanical strength and fabrication characteristics.
The enhanced molybdenum content of Stainless Steel 317 provides superior corrosion resistance compared to conventional SS 316, making it particularly suitable for process industries handling aggressive chemicals and chloride-containing media. Our SS 317 Welded Pipes are widely used in chemical processing plants, fertilizer manufacturing, pulp & paper industries, petrochemical facilities, pharmaceutical production, marine engineering and process piping systems where long service life and reliable corrosion protection are essential.
Every Stainless Steel 317 Welded Pipe manufactured by Kamal Steels is produced using certified raw materials and undergoes comprehensive quality inspections to verify weld integrity, dimensional accuracy and material compliance. With extensive ready stock, project-specific manufacturing capabilities and prompt delivery, we supply dependable welded piping products that meet the performance requirements of industrial projects across India and international markets.
Stainless Steel 317 Welded Pipe Specifications
| Product | Stainless Steel 317 Welded Pipe |
|---|---|
| Material Grade | SS 317 (UNS S31700) |
| Standards | ASTM A312, ASTM A358, ASME SA312, ASME SA358 |
| Outside Diameter | 1/8" NB to 24" NB (6 mm to 610 mm) |
| Wall Thickness | SCH 5S to SCH XXS |
| Length | Single Random, Double Random & Custom Cut Length |
| Pipe Type | Welded, ERW, EFW & Fabricated |
| End Type | Plain End, Beveled End, Threaded |
| Surface Finish | Annealed & Pickled (AP), Bright Annealed (BA), 2B, No.1, Polished |
| Inspection & Testing | Hydro Test, PMI, Radiography, Flattening Test, Visual Inspection, EN 10204 3.1 MTC |
Features & Benefits of Stainless Steel 317 Welded Pipes
Applications of Stainless Steel 317 Welded Pipes
Stainless Steel 317 Welded Pipes are widely used in industries that require superior corrosion resistance and dependable performance under aggressive operating conditions.
Available Size Range
To meet the diverse requirements of industrial piping systems, Kamal Steels supplies Stainless Steel 317 Welded Pipes in a wide range of diameters, wall thicknesses, and custom lengths. Our extensive inventory enables quick delivery for both standard and project-specific requirements.
Available Pipe Schedules
Our Stainless Steel 317 Welded Pipes are manufactured in a variety of schedules to suit low, medium, and high-pressure applications across multiple industries.
| Pipe Schedule | Availability |
|---|---|
| SCH 5S | ✔ Available |
| SCH 10S | ✔ Available |
| SCH 20 | ✔ Available |
| SCH 40S | ✔ Available |
| SCH 60 | ✔ Available |
| SCH 80S | ✔ Available |
| SCH 120 | ✔ Available |
| SCH 160 | ✔ Available |
| XS | ✔ Available |
| XXS | ✔ Available |
Surface Finish of Stainless Steel 317 Welded Pipes
We offer Stainless Steel 317 Welded Pipes in multiple surface finishes to match the requirements of process industries, fabrication projects, and corrosive service environments. Every finish is produced with precision to ensure excellent appearance and long-term performance.
| Surface Finish | Description |
|---|---|
| Annealed & Pickled (AP) | Improves corrosion resistance by removing heat tint and oxide scale after heat treatment. |
| Bright Annealed (BA) | Produces a smooth, reflective finish with excellent surface quality. |
| 2B Finish | Cold rolled finish suitable for industrial fabrication and process piping. |
| No.1 Finish | Hot rolled, annealed, and pickled finish designed for heavy-duty industrial applications. |
| Polished Finish | Available in various polish grades for hygienic and architectural applications. |
Manufacturing Standards
Our Stainless Steel 317 Welded Pipes are manufactured in accordance with internationally recognized standards, ensuring consistent quality, dimensional precision, and dependable performance across demanding industrial applications.
| Standard | Application |
|---|---|
| ASTM A312 | Austenitic stainless steel welded and seamless pressure pipes. |
| ASME SA312 | Pressure piping specification for stainless steel pipes. |
| ASTM A358 | Electric fusion welded stainless steel pipes for corrosive and high-temperature service. |
| ASTM A778 | Welded stainless steel tubular products for general industrial use. |
| ASME B36.19M | Dimensions and wall thickness standards for stainless steel pipes. |
| ASME B36.10M | Standard dimensions for welded and seamless steel pipes. |
Stainless Steel 317 Welded Pipe Chemical Composition
The chemical composition of Stainless Steel 317 is carefully controlled to provide excellent corrosion resistance, improved mechanical strength, and superior performance in aggressive chemical environments.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.08 Max |
| Manganese (Mn) | 2.00 Max |
| Silicon (Si) | 1.00 Max |
| Phosphorus (P) | 0.045 Max |
| Sulfur (S) | 0.030 Max |
| Chromium (Cr) | 18.00 – 20.00 |
| Nickel (Ni) | 11.00 – 15.00 |
| Molybdenum (Mo) | 3.00 – 4.00 |
| Iron (Fe) | Balance |
Mechanical Properties of Stainless Steel 317 Welded Pipe
SS 317 Welded Pipes combine excellent tensile strength with good ductility, making them suitable for demanding pressure and process piping systems.
| Property | Value |
|---|---|
| Tensile Strength | 515 MPa Minimum |
| Yield Strength (0.2% Offset) | 205 MPa Minimum |
| Elongation | 35% Minimum |
| Hardness | 95 HRB Maximum |
| Density | 8.0 g/cm³ |
| Melting Range | 1370 – 1400°C |
Equivalent Grades of Stainless Steel 317 Welded Pipe
| Standard | Equivalent Grade |
|---|---|
| ASTM / ASME | 317 |
| UNS | S31700 |
| Werkstoff No. | 1.4449 |
| EN | X5CrNiMo18-15-4 |
| JIS | SUS 317 |
| ISO | 317 |
Why Choose Kamal Steels?
At Kamal Steels, we focus on supplying Stainless Steel 317 Welded Pipes that consistently meet the quality expectations of industries worldwide. Every pipe is manufactured from certified raw materials, inspected using advanced testing methods, and supplied with complete documentation for quality assurance. Our extensive inventory, competitive pricing, prompt delivery, and dedicated customer support enable us to serve both domestic and international projects efficiently. Whether your requirement is for standard piping or custom specifications, we deliver reliable solutions backed by years of industry expertise.
Frequently Asked Questions
Stainless Steel 317 Welded Pipe is an austenitic stainless steel pipe containing higher molybdenum content than SS 316, offering enhanced resistance to pitting, crevice corrosion, and chemical attack.
SS 317 contains a higher percentage of molybdenum and nickel, providing improved corrosion resistance in aggressive chemical and chloride-containing environments.
Our pipes are manufactured according to ASTM A312, ASTM A358, ASTM A778, ASME SA312, and ASME B36.19M specifications.
Stainless Steel 317 Welded Pipes are available from 1/8" NB to 24" NB in multiple schedules, wall thicknesses, and customized lengths.
These pipes are widely used in chemical processing, petrochemical plants, pulp & paper mills, marine engineering, food processing, pharmaceutical manufacturing, and water treatment facilities.
Yes. Their increased molybdenum content provides excellent resistance to many corrosive chemicals, acids, and chloride-rich environments.
Each pipe is inspected through hydrostatic testing, PMI, radiographic examination, dimensional verification, flattening tests, and visual inspection.
Yes. EN 10204 3.1 Mill Test Certificates are supplied with every shipment, while third-party inspection certificates can be provided upon request.
Yes. We offer customized diameters, wall thicknesses, lengths, schedules, surface finishes, and end preparations based on project requirements.
Kamal Steels is a trusted manufacturer and exporter offering premium-quality Stainless Steel 317 Welded Pipes with certified materials, strict quality control, fast dispatch, competitive pricing, and reliable worldwide supply.
