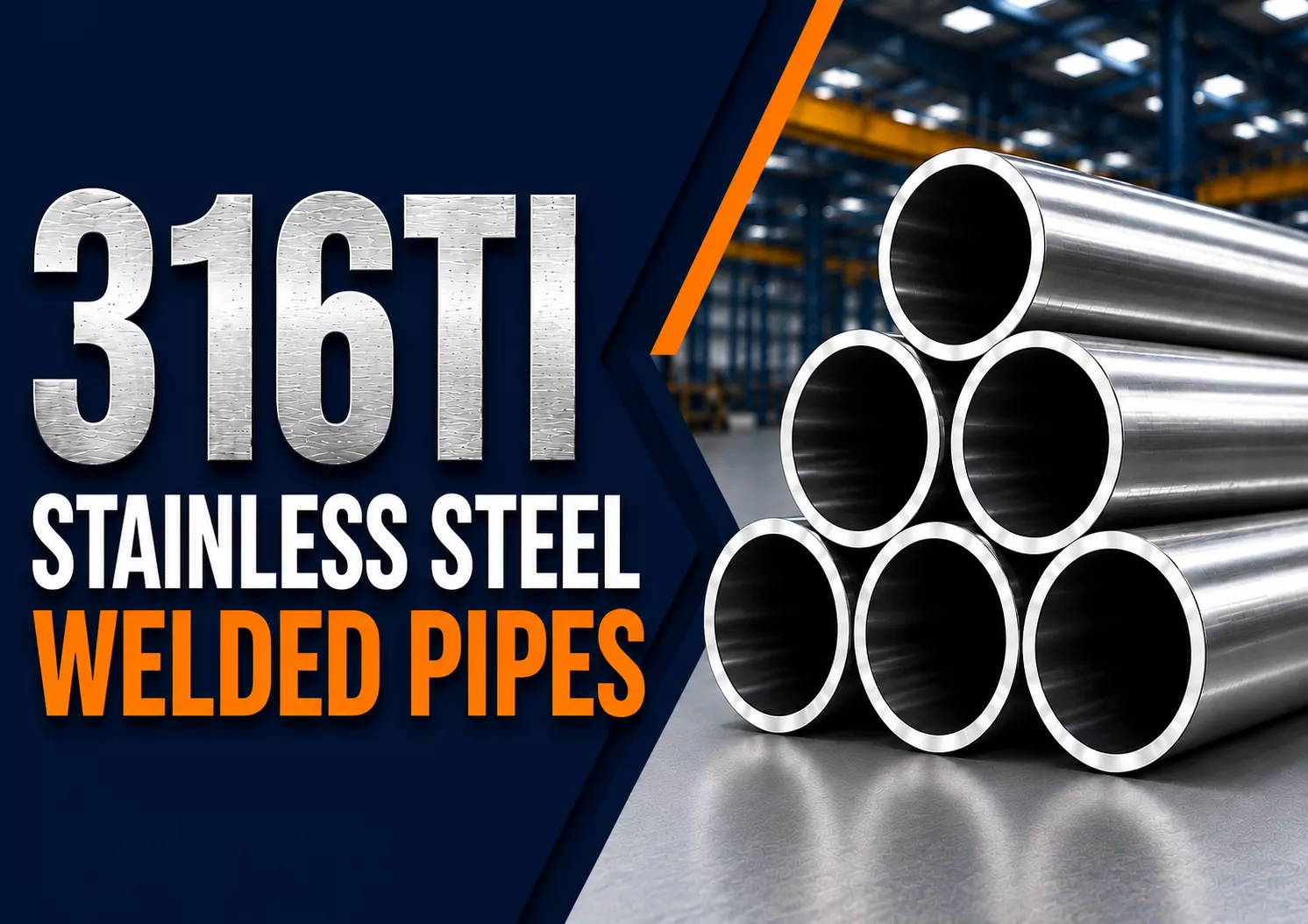

Stainless Steel 316Ti Welded Pipes Manufacturer in India
What is Stainless Steel 316Ti Welded Pipe?
Stainless Steel 316Ti Welded Pipe is a titanium-stabilized austenitic stainless steel pipe manufactured by forming stainless steel material into a tubular shape and joining the longitudinal seam through welding. It contains chromium, nickel and molybdenum, with titanium added to stabilize the grade for elevated-temperature service.
The titanium addition binds carbon and helps reduce chromium carbide precipitation during prolonged exposure to elevated temperatures. As a result, 316Ti can be considered for applications where resistance to intergranular corrosion and elevated-temperature service are important. Molybdenum also provides improved resistance to localized corrosion in chloride-containing environments.
Kamal Steels is a Stainless Steel 316Ti Welded Pipe Manufacturer and Exporter in India, based in Mumbai. The company supplies 316Ti welded pipes in different sizes, schedules, wall thicknesses, lengths and finishes for industrial and international requirements.
The commonly specified designation for pressure piping is ASTM A312 TP316Ti / ASME SA312 TP316Ti, with UNS designation S31635. Pipes can be supplied with testing, inspection and material certification according to applicable project requirements.
Table of Contents
- Stainless Steel 316Ti Welded Pipe Specifications
- What is Stainless Steel 316Ti Welded Pipe?
- Stainless Steel 316Ti Welded Pipe Chemical Composition
- Stainless Steel 316Ti Welded Pipe Sizes, Dimensions & Wall Thickness
- ASTM A312 TP316Ti Welded Pipe Dimensions & Tolerances
- Stainless Steel 316Ti Welded Pipe Pressure Rating
- Stainless Steel 316Ti Welded Pipe Equivalent Grades
- Stainless Steel 316Ti Welded Pipe Surface Finish
- Stainless Steel 316Ti Welded Pipe Applications
- Industries Using Stainless Steel 316Ti Welded Pipe
- Stainless Steel 316Ti Welded Pipe FAQs
Stainless Steel 316Ti Welded Pipe Specifications
Stainless Steel 316Ti Welded Pipe is a titanium-stabilized austenitic stainless steel pipe containing chromium, nickel and molybdenum. Titanium is added to stabilize the carbon in the alloy and reduce the risk of sensitization during exposure to elevated temperatures. This makes 316Ti suitable for applications requiring corrosion resistance and reliable performance in elevated-temperature environments.
ASTM A312 TP316Ti is commonly specified for austenitic stainless steel pipe used in corrosive and high-temperature service. The molybdenum content provides improved resistance to pitting and crevice corrosion, while the titanium stabilization supports resistance to intergranular corrosion after exposure to elevated temperatures.
| Specification | Details |
|---|---|
| Product | Stainless Steel 316Ti Welded Pipe |
| Grade | 316Ti |
| UNS Number | S31635 |
| ASTM Specification | ASTM A312 |
| ASME Specification | ASME SA312 |
| Material Type | Titanium-Stabilized Austenitic Stainless Steel |
| Pipe Type | Welded |
| Nominal Size | 1/8 NB to 48 NB and as required |
| Schedules | SCH 5S, SCH 10S, SCH 40S, SCH 80S, SCH 160, XXS and others |
| Length | Single Random, Double Random and Cut Length |
| End Preparation | Plain End, Bevelled End, Threaded End and as required |
| Surface Finish | Annealed & Pickled, Mill Finish, Bright Annealed and Polished |
| Testing | Hydrostatic, Ultrasonic, PMI, Dimensional Inspection and other specified tests |
| Material Certificate | EN 10204 3.1 Certificate available as required |
Kamal Steels supplies Stainless Steel 316Ti Welded Pipes in standard and custom sizes, schedules, wall thicknesses and lengths. Pipes can be supplied with applicable inspection, testing and material documentation according to customer and project requirements.
Stainless Steel 316Ti Welded Pipe Chemical Composition
The chemical composition of Stainless Steel 316Ti includes chromium, nickel and molybdenum as the primary alloying elements, together with titanium for stabilization. The molybdenum content contributes to resistance against pitting and crevice corrosion, while titanium helps stabilize the material during elevated-temperature exposure.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.08 max. |
| Manganese (Mn) | 2.00 max. |
| Silicon (Si) | 0.75 max. |
| Phosphorus (P) | 0.045 max. |
| Sulfur (S) | 0.030 max. |
| Chromium (Cr) | 16.0–18.0 |
| Nickel (Ni) | 10.0–14.0 |
| Molybdenum (Mo) | 2.0–3.0 |
| Titanium (Ti) | 5 × C min. to 0.70 max. |
| Nitrogen (N) | 0.10 max. |
| Iron (Fe) | Balance |
The actual heat analysis should always be verified against the applicable material specification and the material test certificate supplied with the pipe.
Stainless Steel 316Ti Welded Pipe Sizes, Dimensions & Wall Thickness
Stainless Steel 316Ti Welded Pipes are available in different nominal pipe sizes, outside diameters and wall thicknesses. The required dimensions are selected according to design pressure, operating temperature, piping configuration, fabrication requirements and applicable project standards.
Common schedules include SCH 5S, SCH 10S, SCH 40S, SCH 80S, SCH 160 and XXS, subject to pipe size and availability. Custom outside diameters, wall thicknesses and lengths can also be supplied for specific industrial requirements.
| Nominal Pipe Size | Outside Diameter | Common Schedules |
|---|---|---|
| 1/8 NB | 10.3 mm | SCH 5S, SCH 10S, SCH 40S, SCH 80S |
| 1/4 NB | 13.7 mm | SCH 5S, SCH 10S, SCH 40S, SCH 80S |
| 1/2 NB | 21.3 mm | SCH 5S, SCH 10S, SCH 40S, SCH 80S |
| 1 NB | 33.4 mm | SCH 5S, SCH 10S, SCH 40S, SCH 80S |
| 1 1/2 NB | 48.3 mm | SCH 5S, SCH 10S, SCH 40S, SCH 80S |
| 2 NB | 60.3 mm | SCH 5S, SCH 10S, SCH 40S, SCH 80S |
| 3 NB | 88.9 mm | SCH 5S, SCH 10S, SCH 40S, SCH 80S |
| 4 NB | 114.3 mm | SCH 5S, SCH 40S, SCH 80S |
| 6 NB | 168.3 mm | SCH 5S, SCH 40S, SCH 80S, SCH 160 |
| 8 NB | 219.1 mm | SCH 10S, SCH 40S, SCH 80S, SCH 160 |
| 10 NB | 273.1 mm | SCH 10S, SCH 40S, SCH 80S, SCH 160 |
| 12 NB | 323.9 mm | SCH 10S, SCH 40S, SCH 80S, SCH 160 |
| 14 NB | 355.6 mm | SCH 10S, SCH 40S, SCH 80S |
| 16 NB | 406.4 mm | SCH 10S, SCH 40, SCH 80 |
| 18 NB | 457.2 mm | SCH 10S, SCH 40, SCH 80 |
| 20 NB | 508.0 mm | SCH 10S, SCH 40, SCH 80 |
| 24 NB | 610.0 mm | SCH 10S, SCH 40, SCH 80 |
Kamal Steels supplies Stainless Steel 316Ti Welded Pipes in standard and custom sizes, schedules, wall thicknesses and lengths according to applicable standards and project requirements.
ASTM A312 TP316Ti Welded Pipe Dimensions & Tolerances
ASTM A312 TP316Ti Welded Pipes are manufactured with controlled dimensional requirements for outside diameter, wall thickness and length. Dimensional accuracy is important for pipe fit-up, welding, fabrication and installation in process and pressure-piping systems.
| Parameter | Requirement |
|---|---|
| Outside Diameter | Controlled according to applicable ASTM A312 dimensional requirements and specified pipe size. |
| Wall Thickness | Controlled according to specified nominal wall thickness and applicable standard requirements. |
| Length | Available in standard random, double random or specified cut lengths. |
| Ovality | Controlled to maintain acceptable roundness and dimensional consistency. |
| End Preparation | Plain, bevelled or other specified end preparation. |
Dimensional inspection can include outside diameter, wall thickness, length and other applicable measurements. Additional inspection requirements can be specified for critical pressure and elevated-temperature applications.
ASTM A312 TP316Ti Welded Pipe Dimensions & Tolerances
ASTM A312 TP316Ti Welded Pipes are manufactured with controlled dimensional requirements for outside diameter, wall thickness and length. Dimensional accuracy is important for pipe fit-up, welding, fabrication and installation in process and pressure-piping systems.
| Parameter | Requirement |
|---|---|
| Outside Diameter | Controlled according to applicable ASTM A312 dimensional requirements and specified pipe size. |
| Wall Thickness | Controlled according to specified nominal wall thickness and applicable standard requirements. |
| Length | Available in standard random, double random or specified cut lengths. |
| Ovality | Controlled to maintain acceptable roundness and dimensional consistency. |
| End Preparation | Plain, bevelled or other specified end preparation. |
Dimensional inspection can include outside diameter, wall thickness, length and other applicable measurements. Additional inspection requirements can be specified for critical pressure and elevated-temperature applications.
Stainless Steel 316Ti Welded Pipe Pressure Rating
The pressure rating of Stainless Steel 316Ti Welded Pipe depends on pipe size, wall thickness, operating temperature, allowable stress and the applicable piping design code. The actual pressure capacity should therefore be determined using the specific design conditions rather than a single generic pressure value.
| Factor | Effect on Pressure Design |
|---|---|
| Pipe Size | Outside diameter is considered in pressure design calculations. |
| Wall Thickness | Wall thickness directly affects pressure-carrying capacity. |
| Pipe Schedule | Higher schedules generally provide greater nominal wall thickness. |
| Operating Temperature | Allowable material stress varies with temperature. |
| Design Code | The applicable piping code determines the pressure design calculation. |
| Corrosion Allowance | Additional wall thickness may be required where applicable. |
The final allowable working pressure should be established using the actual design pressure, temperature, pipe dimensions, material properties and applicable engineering code.
Stainless Steel 316Ti Welded Pipe Equivalent Grades
Stainless Steel 316Ti is identified by different designations under international standards. These designations help manufacturers, engineers and procurement teams identify the titanium-stabilized 316 stainless steel grade.
| Standard | 316Ti Designation |
|---|---|
| ASTM | 316Ti |
| ASME | SA312 TP316Ti |
| UNS | S31635 |
| EN | 1.4571 |
Equivalent designations should be verified against the required chemical composition, mechanical properties, product specification, manufacturing method and project requirements before accepting material substitution.
Stainless Steel 316Ti Welded Pipe Applications
Stainless Steel 316Ti Welded Pipes are used in applications where corrosion resistance, resistance to sensitization and reliable performance at elevated temperatures are required.
- High-temperature process piping
- Chemical processing systems
- Petrochemical piping
- Heat exchanger systems
- Refinery process piping
- Power generation equipment
- Marine process systems
- Industrial fluid handling systems
The suitability of 316Ti should be evaluated according to the actual temperature, pressure, chemical environment, corrosion conditions and applicable design requirements.
Industries Using Stainless Steel 316Ti Welded Pipe
Stainless Steel 316Ti Welded Pipes are used in industries requiring titanium-stabilized austenitic stainless steel for corrosive and elevated-temperature service.
| Industry | Typical Use |
|---|---|
| Chemical Industry | Corrosive process piping and fluid handling |
| Petrochemical Industry | High-temperature process piping and equipment |
| Oil & Gas Industry | Process and utility piping applications |
| Refinery Industry | Elevated-temperature process systems |
| Power Generation | High-temperature piping and process systems |
| Marine Industry | Corrosive and chloride-containing service environments |
| Heat Exchanger Industry | High-temperature fluid circulation systems |
Kamal Steels supplies Stainless Steel 316Ti Welded Pipes from India for domestic and international industrial requirements. Pipes are available with different sizes, schedules, wall thicknesses, lengths, finishes, testing options and material documentation according to project requirements.
Frequently Asked Questions
Stainless Steel 316Ti Welded Pipe is a titanium-stabilized austenitic stainless steel pipe that provides excellent corrosion resistance, improved weldability, and enhanced performance at elevated temperatures.
Titanium stabilizes the alloy by preventing carbide precipitation during welding, improving resistance to intergranular corrosion and extending service life in high-temperature applications.
Our SS 316Ti Welded Pipes are manufactured according to ASTM A312, ASTM A358, ASTM A778, ASME SA312, and ASME B36.19M standards.
We supply SS 316Ti Welded Pipes from 1/8" NB to 24" NB in various schedules, wall thicknesses, and customized lengths to meet diverse industrial requirements.
These pipes are widely used in chemical processing plants, petrochemical industries, refineries, marine engineering, pharmaceutical manufacturing, power plants, and heat exchanger systems.
Yes. SS 316Ti offers excellent oxidation resistance and maintains mechanical strength during prolonged exposure to elevated temperatures.
Each pipe undergoes Hydrostatic Testing, PMI, Radiographic Testing, Flattening Test, Visual Inspection, and Dimensional Inspection before dispatch.
Yes. Every Stainless Steel 316Ti Welded Pipe is supplied with EN 10204 3.1 Mill Test Certificates, with third-party inspection available upon request.
Yes. We manufacture pipes in customized diameters, wall thicknesses, lengths, schedules, end preparations, and surface finishes according to customer specifications.
Kamal Steels supplies premium-quality SS 316Ti Welded Pipes with certified materials, stringent quality assurance, competitive prices, ready stock, timely delivery, and reliable export services worldwide.
