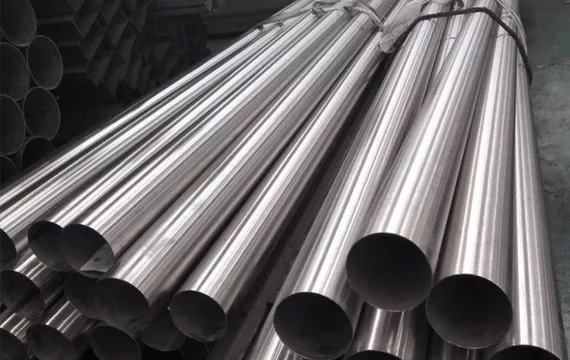

Stainless Steel 316Ti Seamless Tubes Manufacturer in India
What Are Stainless Steel 316Ti Seamless Tubes?
Stainless Steel 316Ti Seamless Tubes are titanium-stabilized austenitic stainless steel tubes developed for applications requiring reliable corrosion resistance and structural stability during prolonged exposure to elevated temperatures. Grade 316Ti is identified by UNS S31635 and is based on the 316 stainless steel composition with titanium added to improve resistance to sensitization.
The titanium stabilization of 316Ti helps prevent chromium carbide precipitation when the material is exposed to elevated temperatures. This characteristic allows Stainless Steel 316Ti Seamless Tubes to maintain their corrosion-resistant properties in applications involving extended thermal exposure. The presence of molybdenum also contributes to improved resistance against pitting and crevice corrosion in chloride-containing environments.
For industrial requirements, Stainless Steel 316Ti Seamless Tubes can be supplied according to applicable ASTM and ASME specifications. Common requirements include ASTM A213 for seamless alloy-steel boiler, superheater and heat-exchanger tubes and other applicable standards based on the tube's intended service. Dimensions can be supplied according to outside diameter, wall thickness, schedule, length and finish requirements.
These tubes are suitable for heat exchangers, chemical processing equipment, petrochemical systems, refinery equipment, power generation plants, high-temperature process lines, marine equipment and pharmaceutical machinery. The combination of titanium stabilization, molybdenum-bearing chemistry and austenitic structure makes 316Ti useful where both corrosion resistance and elevated-temperature stability are important.
Kamal Steels is a Manufacturer and Stockist of Stainless Steel 316Ti Seamless Tubes, supplying tubing in standard and customized dimensions. Products can be offered with material certificates, inspection documentation and testing as required for domestic and international industrial projects.
Table of Contents
- Stainless Steel 316Ti Seamless Tube Specifications
- Stainless Steel 316Ti Seamless Tube Size Chart
- Stainless Steel 316Ti Seamless Tube Standards
- Stainless Steel 316Ti Seamless Tube Features
- Stainless Steel 316Ti Chemical Composition
- Stainless Steel 316Ti Mechanical Properties
- Stainless Steel 316Ti Seamless Tube Applications
- Industries Using Stainless Steel 316Ti Seamless Tubes
- Frequently Asked Questions
Stainless Steel 316Ti Seamless Tube Specifications
316Ti seamless tubing can be manufactured in different dimensions and finishes to meet equipment design, process conditions and applicable material specifications.
| Specification | Stainless Steel 316Ti Seamless Tubes |
|---|---|
| Material | Stainless Steel |
| Grade | 316Ti |
| UNS | S31635 |
| Tube Type | Seamless |
| ASTM Standard | ASTM A213, Applicable ASTM Specifications |
| ASME Standard | ASME SA213, Applicable ASME Specifications |
| Outside Diameter | As per requirement |
| Wall Thickness | As per requirement |
| Schedule | As required |
| Length | Random, Fixed or Customized |
| Finish | Annealed, Pickled, Bright Annealed, Polished or As required |
| Form | Round Tube |
Stainless Steel 316Ti Seamless Tube Size Chart
Stainless Steel 316Ti Seamless Tubes are available in a broad range of outside diameters and wall thicknesses. Special dimensions and cut lengths can also be supplied according to project requirements.
| Tube Size | Outside Diameter (mm) | Wall Thickness | Length |
|---|---|---|---|
| 1/2" | 12.70 | As required | As required |
| 3/4" | 19.05 | As required | As required |
| 1" | 25.40 | As required | As required |
| 1-1/2" | 38.10 | As required | As required |
| 2" | 50.80 | As required | As required |
| 3" | 76.20 | As required | As required |
| 4" | 101.60 | As required | As required |
| 6" | 152.40 | As required | As required |
| 8" | 203.20 | As required | As required |
Stainless Steel 316Ti Seamless Tube Standards
The required material standard depends on the tube's application, manufacturing route, dimensions and service conditions. Common specifications include:
| Standard | Application / Product Requirement |
|---|---|
| ASTM A213 | Seamless ferritic and austenitic alloy-steel boiler, superheater and heat-exchanger tubes |
| ASTM A269 | Austenitic stainless steel tubing for general corrosion-resisting service |
| ASME SA213 | Applicable seamless ferritic and austenitic alloy-steel tubing requirements |
| ASME SA269 | Applicable austenitic stainless steel tubing requirements for general service |
Stainless Steel 316Ti Seamless Tube Features
The titanium-stabilized structure of 316Ti provides useful performance in applications where stainless steel tubing is exposed to elevated temperatures and corrosive process conditions.
- Titanium-stabilized austenitic stainless steel
- Improved resistance to sensitization during elevated-temperature exposure
- Good resistance to pitting and crevice corrosion
- Molybdenum-enhanced corrosion resistance
- Good performance in chloride-containing environments
- Suitable for prolonged high-temperature service
- Good toughness and ductility
- Good fabrication characteristics
- Suitable for chemical and process equipment
- Available in different sizes and surface finishes
Stainless Steel 316Ti Chemical Composition
The chemistry of Stainless Steel 316Ti combines chromium, nickel and molybdenum with a controlled titanium addition. Titanium provides stabilization against sensitization during elevated-temperature exposure.
| Element | Composition (%) |
|---|---|
| Chromium | 16.0 - 18.0 |
| Nickel | 10.0 - 14.0 |
| Molybdenum | 2.0 - 3.0 |
| Carbon | 0.08 max. |
| Titanium | 5 × C min. to 0.70 max. |
| Manganese | 2.00 max. |
| Silicon | 0.75 max. |
| Phosphorus | 0.045 max. |
| Sulfur | 0.030 max. |
| Iron | Balance |
Stainless Steel 316Ti Mechanical Properties
Stainless Steel 316Ti combines useful tensile strength with ductility and corrosion resistance, making it suitable for pressure, heat-transfer and process tubing applications.
| Property | Minimum Requirement |
|---|---|
| Tensile Strength | 515 MPa min. |
| Yield Strength | 205 MPa min. |
| Elongation | 35% min. |
| Density | Approx. 8.0 g/cm³ |
Note: Mechanical values should be confirmed against the applicable product specification, dimensions, heat treatment condition and material test certificate.
Stainless Steel 316Ti Seamless Tube Applications
The combination of titanium stabilization and molybdenum-bearing stainless steel chemistry makes 316Ti suitable for equipment operating under corrosive and elevated-temperature conditions.
Chemical Processing
Used in process equipment exposed to corrosive chemicals and elevated operating temperatures.
Petrochemical Plants
Applied in process systems where corrosion resistance and thermal stability are important.
Heat Exchangers
Used for heat-transfer systems requiring corrosion-resistant stainless steel tubing.
Refinery Equipment
Suitable for selected refinery process equipment operating in demanding environments.
Power Generation
Used in selected high-temperature process and heat-transfer equipment.
Marine Systems
Applied in equipment requiring resistance to chloride-bearing and marine conditions.
Industries Using Stainless Steel 316Ti Seamless Tubes
316Ti seamless tubing is selected across industries that require stable stainless steel performance in corrosive service and applications involving elevated temperatures.
Chemical Industry
Used for corrosion-resistant process equipment and chemical-handling systems.
Petrochemical Industry
Selected for equipment exposed to demanding process and thermal conditions.
Refining Industry
Used in selected refinery systems requiring corrosion-resistant tubing.
Power Industry
Applied in heat-transfer and process systems operating under demanding conditions.
Marine Industry
Used in selected applications exposed to seawater and chloride-containing environments.
Engineering Industry
Used for specialized equipment requiring titanium-stabilized stainless steel tubing.
Frequently Asked Questions
Stainless Steel 316Ti Seamless Tubes are titanium-stabilized austenitic stainless steel tubes manufactured from Stainless Steel 316Ti (UNS S31635 / WNR 1.4571). They provide excellent corrosion resistance, superior weldability, and improved high-temperature stability.
Our Stainless Steel 316Ti Seamless Tubes are manufactured according to ASTM A213, ASTM A269, ASME SA213, and ASME SA269 international standards.
SS 316Ti Seamless Tubes offer excellent resistance to pitting, crevice corrosion, intergranular corrosion, oxidation, and sensitization, along with superior weldability and high-temperature performance.
They are widely used in chemical processing plants, petrochemical industries, marine engineering, offshore platforms, heat exchangers, pharmaceutical manufacturing, power generation plants, and oil & gas facilities.
SS 316Ti Seamless Tubes are available in various outside diameters, wall thicknesses, schedules, surface finishes, and custom cut lengths to meet diverse industrial requirements.
Each tube undergoes Hydrostatic Testing, Ultrasonic Testing (UT), Eddy Current Testing (ECT), Positive Material Identification (PMI), Chemical Analysis, Mechanical Testing, Flattening Test, Flaring Test, Intergranular Corrosion (IGC) Testing, and Dimensional Inspection.
The titanium addition stabilizes the alloy by preventing chromium carbide precipitation during welding and prolonged heat exposure, improving resistance to intergranular corrosion and maintaining long-term corrosion resistance.
Yes. Every shipment includes EN 10204 3.1 Mill Test Certificates, inspection reports, complete material traceability, and third-party inspection certificates upon request.
Yes. Kamal Steels exports Stainless Steel 316Ti Seamless Tubes worldwide with export-standard packaging, complete documentation, and timely international delivery.
Kamal Steels offers ASTM-compliant Stainless Steel 316Ti Seamless Tubes with ready stock, certified quality, competitive pricing, stringent quality control, export-standard packaging, complete documentation, and dependable worldwide delivery for critical industrial applications.
