Aluminium 7075 Tubes Exporter in India

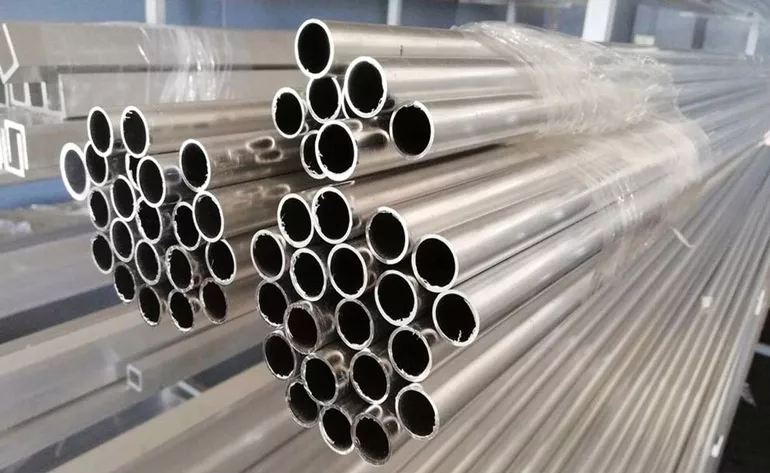

What Are Aluminium 7075 Tubes?
Aluminium 7075 Tubes are manufactured from Aluminium Alloy 7075, a high-strength aluminium-zinc alloy known for its excellent strength-to-weight ratio, good fatigue resistance and high mechanical strength. The alloy is identified by UNS A97075 and is commonly used in applications where lightweight construction and high strength are important.
Aluminium 7075 Tubes offer a combination of high tensile strength, good fatigue resistance, lightweight construction and machinability. They are commonly supplied in heat-treated tempers such as T6 and T73, with the selected temper depending on the required strength, stress-corrosion resistance and application conditions.
These tubes are used in aerospace components, aircraft structures, high-performance automotive systems, defense equipment, precision machinery and other demanding engineering applications. Their high strength-to-weight ratio makes Aluminium 7075 suitable where reducing component weight while maintaining mechanical performance is a key requirement.
Kamal Steels is a reliable Aluminium 7075 Tubes Exporter and Supplier in India, supplying tubes in different sizes, wall thicknesses, lengths and tempers according to customer and project requirements. We cater to domestic and international requirements with products supplied according to applicable specifications and material standards.
Table of Contents
- Aluminium 7075 Tube Specifications
- Aluminium 7075 Tube Size Chart
- Aluminium 7075 Tube Weight Chart
- ASTM B210 Aluminium 7075 Tube
- Aluminium 7075 Tube Features
- Aluminium 7075 Tube Chemical Composition
- Aluminium 7075 Tube Mechanical Properties
- Aluminium 7075 Tube Equivalent Grades
- Aluminium 7075 Tube vs Other Aluminium Grades
- Aluminium 7075 Tube Applications
- Industries Using Aluminium 7075 Tubes
- Frequently Asked Questions
Aluminium 7075 Tube Specifications
Aluminium 7075 Tubes are Manufactured from a high-strength aluminium-zinc alloy designed for applications requiring a high strength-to-weight ratio. The alloy is designated as UNS A97075 and is available in different tempers to provide specific combinations of strength, toughness and stress-corrosion resistance.
| Specification | Aluminium 7075 Tubes |
|---|---|
| Material | Aluminium Alloy |
| Grade | 7075 |
| UNS | A97075 |
| Alloy Series | 7000 Series |
| Primary Alloying Element | Zinc |
| Tube Type | Seamless / As specified |
| Common Tempers | T6, T73 and other applicable tempers |
| Outside Diameter | As per requirement |
| Wall Thickness | As per requirement |
| Length | Random, Fixed or Customized |
| Surface Finish | Mill Finish / As required |
Aluminium 7075 Tube Size Chart
Aluminium 7075 Tubes can be supplied in different outside diameters, wall thicknesses and lengths according to application and project requirements. Standard and customized dimensions are available depending on the required manufacturing specification.
| Tube Size (Inch) | Outside Diameter (mm) | Outside Diameter (Inch) | Wall Thickness |
|---|---|---|---|
| 1/2" | 12.70 | 0.500 | As per requirement |
| 3/4" | 19.05 | 0.750 | As per requirement |
| 1" | 25.40 | 1.000 | As per requirement |
| 1-1/4" | 31.75 | 1.250 | As per requirement |
| 1-1/2" | 38.10 | 1.500 | As per requirement |
| 2" | 50.80 | 2.000 | As per requirement |
| 2-1/2" | 63.50 | 2.500 | As per requirement |
| 3" | 76.20 | 3.000 | As per requirement |
| 4" | 101.60 | 4.000 | As per requirement |
| 6" | 152.40 | 6.000 | As per requirement |
Kamal Steels can supply Aluminium 7075 Tubes in customized outside diameters, wall thicknesses and lengths according to customer and project requirements.
Aluminium 7075 Tube Weight Chart
The theoretical weight of an Aluminium 7075 Tube depends on its outside diameter, inside diameter, wall thickness and length. The following values are approximate reference values based on aluminium density and may vary according to dimensional tolerances and actual manufacturing conditions.
| Outside Diameter (mm) | Wall Thickness (mm) | Inside Diameter (mm) | Approx. Weight (kg/m) |
|---|---|---|---|
| 12.70 | 1.00 | 10.70 | 0.10 |
| 19.05 | 1.50 | 16.05 | 0.23 |
| 25.40 | 2.00 | 21.40 | 0.39 |
| 31.75 | 2.50 | 26.75 | 0.63 |
| 38.10 | 3.00 | 32.10 | 0.88 |
| 50.80 | 3.00 | 44.80 | 1.22 |
| 63.50 | 3.00 | 57.50 | 1.62 |
| 76.20 | 4.00 | 68.20 | 2.47 |
| 101.60 | 5.00 | 91.60 | 4.02 |
| 152.40 | 6.00 | 140.40 | 7.46 |
Note: The values shown are approximate theoretical weights and should not be used as certified material weights.
ASTM B210 Aluminium 7075 Tube
ASTM B210 Aluminium 7075 Tubes are supplied according to the applicable requirements for seamless tubes manufactured from aluminium and aluminium-alloy products. Aluminium 7075, designated as UNS A97075, is a high-strength alloy commonly selected for demanding engineering and aerospace applications.
The required temper and dimensions should be specified according to the intended service conditions. 7075-T6 is widely recognized for its high strength, while tempers such as T73 are selected when improved resistance to stress-corrosion cracking is required.
| Specification | Details |
|---|---|
| ASTM Standard | ASTM B210 / B210M, where applicable |
| Grade | Aluminium 7075 |
| UNS | A97075 |
| Alloy Series | 7000 Series |
| Product | Aluminium Tube |
| Common Tempers | T6, T73 and other applicable tempers |
Aluminium 7075 Tube Features
Aluminium 7075 Tubes are selected primarily for their high mechanical strength and lightweight construction. Their properties make them suitable for high-performance applications where strength-to-weight ratio is an important design consideration.
- High strength-to-weight ratio
- High tensile and yield strength
- Good fatigue resistance
- Lightweight construction
- Good machinability
- Good hardness
- Suitable for high-performance engineering applications
- Available in different heat-treated tempers
- Suitable for aerospace and specialized applications
Aluminium 7075 Tube Chemical Composition
Aluminium 7075 is primarily an aluminium-zinc alloy. Zinc is the principal alloying element, while magnesium, copper and chromium contribute to the alloy's high-strength characteristics and heat-treatment response.
| Element | Composition (%) |
|---|---|
| Silicon | 0.40 max. |
| Iron | 0.50 max. |
| Copper | 1.20 - 2.00 |
| Manganese | 0.30 max. |
| Magnesium | 2.10 - 2.90 |
| Chromium | 0.18 - 0.28 |
| Zinc | 5.10 - 6.10 |
| Titanium | 0.20 max. |
| Other Elements | 0.05 max. each / 0.15 max. total |
| Aluminium | Balance |
Aluminium 7075 Tube Mechanical Properties
Aluminium 7075 is one of the higher-strength aluminium alloys commonly used for demanding engineering applications. Its mechanical properties depend on the selected temper, dimensions and applicable product specification.
| Property | Aluminium 7075-T6 | Aluminium 7075-T73 |
|---|---|---|
| Tensile Strength | Approx. 572 MPa | Approx. 505 MPa |
| Yield Strength | Approx. 503 MPa | Approx. 435 MPa |
| Elastic Modulus | Approx. 71.7 GPa | |
| Shear Modulus | Approx. 26.9 GPa | |
| Density | Approx. 2.81 g/cm³ | |
Note: Mechanical properties can vary with temper, product form, dimensions and applicable specification. Certified material test reports should be used to confirm the properties of supplied tubes.
Aluminium 7075 Tube Equivalent Grades
Aluminium 7075 is identified through alloy and UNS designation systems. The following designations are commonly associated with this aluminium alloy.
| Designation | Aluminium 7075 |
|---|---|
| Aluminium Alloy | 7075 |
| UNS | A97075 |
| Alloy Series | 7000 Series |
| Common Temper | T6, T73 |
| Primary Alloying Element | Zinc |
Aluminium 7075 Tube vs Other Aluminium Grades
Aluminium alloys differ significantly in strength, corrosion resistance, formability, machinability and weldability. Aluminium 7075 is primarily selected when high strength and a high strength-to-weight ratio are more important than maximum formability or weldability.
| Grade | Main Characteristics | Typical Applications |
|---|---|---|
| Aluminium 1100 | Excellent formability, corrosion resistance and conductivity | General fabrication, heat exchangers and HVAC |
| Aluminium 5052 | Good corrosion resistance and formability | Marine, transportation and fabricated components |
| Aluminium 6061 | Good strength, machinability, weldability and corrosion resistance | Structural and general engineering applications |
| Aluminium 6063 | Excellent extrusion characteristics and surface finish | Architectural and tubular applications |
| Aluminium 7075 | Very high strength-to-weight ratio and high mechanical strength | Aerospace, defense and high-performance components |
Aluminium 7075 Tube Applications
Aluminium 7075 Tubes are used in applications where high strength, low weight and reliable mechanical performance are important. The alloy is particularly suitable for demanding aerospace, transportation and precision engineering applications.
Aerospace Applications
Used in selected aircraft structures, aerospace components and high-strength lightweight assemblies.
Automotive Applications
Used in high-performance vehicle components where weight reduction and strength are important.
Defense Applications
Used in selected defense equipment and components requiring high strength and lightweight construction.
Precision Machinery
Used in machined components and mechanical systems requiring high-strength aluminium alloy.
High-Performance Applications
Used in specialized equipment where a high strength-to-weight ratio is required.
Engineering Components
Used for selected shafts, fittings, structural components and precision-machined parts.
Industries Using Aluminium 7075 Tubes
Kamal Steels supplies Aluminium 7075 Tubes for industries requiring high-strength and lightweight aluminium tubing solutions. Tubes can be supplied in different sizes, wall thicknesses, lengths and tempers according to customer and project requirements.
Aerospace Industry
Used for high-strength lightweight components and selected aircraft applications.
Defense Industry
Used in specialized equipment and components where strength and low weight are important.
Automotive Industry
Used in high-performance vehicle components and lightweight mechanical systems.
Engineering Industry
Used in precision-machined components, machinery and specialized engineering systems.
Industrial Manufacturing
Used in selected high-strength fabricated and machined industrial components.
Precision Engineering
Used for components requiring high mechanical strength and dimensional reliability.
Frequently Asked Questions
Aluminium 7075 Tubes are high-strength heat-treatable aluminium alloy tubes manufactured from Aluminium Alloy 7075 (UNS A97075 / WNR 3.4365). They are widely used in aerospace, defense, automotive, and high-performance engineering applications due to their exceptional strength-to-weight ratio.
Our Aluminium 7075 Tubes are manufactured according to ASTM B210, ASTM B241, ASTM B483, and other applicable international standards.
Aluminium 7075 Tubes provide exceptional mechanical strength, excellent fatigue resistance, outstanding machinability, good wear resistance, lightweight performance, and excellent dimensional stability for demanding engineering applications.
They are widely used in aerospace structures, defense equipment, motorsports, automotive components, hydraulic systems, aircraft parts, tooling, robotics, structural engineering, and industrial machinery.
Aluminium 7075 Tubes are available in O, T6, T651, T73, and T7351 tempers to meet different strength and machining requirements.
Each tube undergoes Chemical Analysis, Mechanical Testing, Hardness Testing, Positive Material Identification (PMI), Dimensional Inspection, Eddy Current Testing (ECT), Surface Finish Inspection, and Visual Inspection.
Aluminium 7075 offers one of the highest strength-to-weight ratios among commercial aluminium alloys, along with excellent fatigue resistance and outstanding mechanical properties, making it ideal for aircraft and aerospace components.
Yes. Every shipment includes EN 10204 3.1 Mill Test Certificates, inspection reports, complete material traceability, and third-party inspection certificates upon request.
Yes. Kamal Steels exports Aluminium 7075 Tubes worldwide with export-standard packaging, complete documentation, and timely international delivery.
Kamal Steels offers ASTM-compliant Aluminium 7075 Tubes with ready stock, certified quality, competitive pricing, stringent quality control, export-standard packaging, complete documentation, and dependable worldwide delivery for high-strength engineering and aerospace applications.
