Aluminium 7075 Pipes Exporter in India

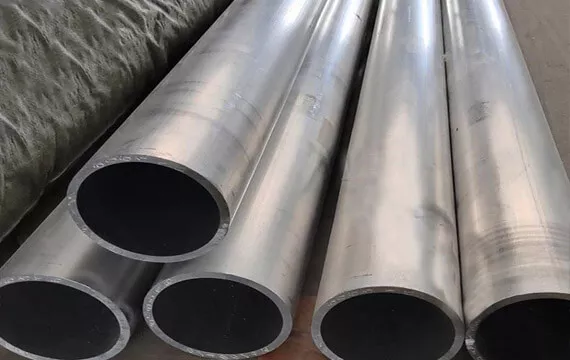

What Are Aluminium 7075 Pipes?
Aluminium 7075 Pipes are manufactured from 7075 aluminium alloy, a high-strength heat-treatable alloy primarily developed for applications where high mechanical strength and low weight are important. The alloy is commonly associated with zinc as its principal alloying element, along with magnesium and copper, providing high strength compared with many other aluminium alloys.
Aluminium 7075 Pipes are available in different dimensions, wall thicknesses and lengths depending on the applicable product specification and customer requirements. Their high strength-to-weight ratio makes them suitable for selected aerospace, transportation, engineering and high-performance structural applications.
The performance of Aluminium 7075 Pipes depends on the alloy temper, manufacturing condition, dimensions and service environment. They are selected where strength and weight reduction are important design considerations and where the application is compatible with the alloy's corrosion and fabrication characteristics.
Kamal Steels supplies and exports Aluminium 7075 Pipes in different sizes, wall thicknesses and lengths according to customer and project requirements. Products can be supplied with applicable inspection, testing, material certificates and export packaging for domestic and international requirements.
Aluminium 7075 Pipe Specifications
Kamal Steels Supplies and Exports Aluminium 7075 Pipes manufactured in accordance with internationally recognized ASTM, ASME, and EN standards. Produced from premium-quality Aluminium Alloy 7075, these pipes offer exceptional mechanical strength, excellent fatigue resistance, superior machinability, and outstanding dimensional stability. Our Aluminium 7075 Pipes are available in seamless and welded forms with multiple diameters, wall thicknesses, tempers, and custom lengths to meet the demanding requirements of aerospace, defence, automotive, hydraulic, tooling, and heavy engineering industries.
| Product | Aluminium 7075 Pipes |
|---|---|
| Material Grade | Aluminium Alloy 7075 (UNS A97075) |
| Specifications | ASTM B210, ASTM B241, ASTM B345, ASME SB210, ASME SB241 |
| Pipe Type | Seamless & Welded |
| Outside Diameter | 6 mm to 250 mm |
| Wall Thickness | 0.5 mm to 25 mm |
| Temper | O, T6, T651, T73, T7351 |
| Length | 3 Meter, 6 Meter & Custom Cut Lengths |
| Surface Finish | Mill Finish, Anodized, Polished |
| Certification | EN 10204 3.1 Mill Test Certificate (MTC) |
Aluminium 7075 Pipe Size Chart
Aluminium 7075 Pipes are available in different nominal pipe sizes, outside diameters and wall thicknesses for engineering and industrial applications. The standard pipe dimensions are selected according to the applicable dimensional specification, while non-standard sizes can be supplied according to customer requirements.
| Nominal Pipe Size | DN | Outside Diameter (OD) mm | Outside Diameter (OD) inch | Wall Thickness mm | Schedule |
|---|---|---|---|---|---|
| 1/2" | 15 | 21.34 | 0.840 | 2.77 | 40 |
| 3/4" | 20 | 26.67 | 1.050 | 2.87 | 40 |
| 1" | 25 | 33.40 | 1.315 | 3.38 | 40 |
| 1-1/4" | 32 | 42.16 | 1.660 | 3.56 | 40 |
| 1-1/2" | 40 | 48.26 | 1.900 | 3.68 | 40 |
| 2" | 50 | 60.33 | 2.375 | 3.91 | 40 |
| 2-1/2" | 65 | 73.03 | 2.875 | 5.16 | 40 |
| 3" | 80 | 88.90 | 3.500 | 5.49 | 40 |
| 4" | 100 | 114.30 | 4.500 | 6.02 | 40 |
| 5" | 125 | 141.30 | 5.563 | 6.55 | 40 |
| 6" | 150 | 168.28 | 6.625 | 7.11 | 40 |
| 8" | 200 | 219.08 | 8.625 | 7.04 | 40 |
Aluminium 7075 Pipes can also be supplied in customized outside diameters, wall thicknesses and lengths according to project specifications and customer requirements.
Aluminium 7075 Pipe Weight Chart
The weight of an Aluminium 7075 Pipe depends on its outside diameter and wall thickness. The following chart provides theoretical weight per metre for selected pipe sizes based on the stated dimensions and a nominal Aluminium 7075 density of 2.81 g/cm³.
| Nominal Pipe Size | Outside Diameter (mm) | Wall Thickness (mm) | Inside Diameter (mm) | Weight (kg/m) |
|---|---|---|---|---|
| 1/2" | 21.34 | 2.77 | 15.80 | 0.45 |
| 3/4" | 26.67 | 2.87 | 20.93 | 0.60 |
| 1" | 33.40 | 3.38 | 26.64 | 0.90 |
| 1-1/4" | 42.16 | 3.56 | 35.04 | 1.21 |
| 1-1/2" | 48.26 | 3.68 | 40.90 | 1.45 |
| 2" | 60.33 | 3.91 | 52.51 | 1.95 |
| 2-1/2" | 73.03 | 5.16 | 62.71 | 3.09 |
| 3" | 88.90 | 5.49 | 77.92 | 4.04 |
| 4" | 114.30 | 6.02 | 102.26 | 5.75 |
| 5" | 141.30 | 6.55 | 128.20 | 7.79 |
| 6" | 168.28 | 7.11 | 154.06 | 10.12 |
| 8" | 219.08 | 7.04 | 205.00 | 13.18 |
Note: The weights shown are theoretical values calculated using a nominal Aluminium 7075 density of 2.81 g/cm³. Actual pipe weight may vary slightly because of dimensional tolerances, manufacturing conditions and the applicable product specification.
Aluminium 7075 Pipe Schedule Chart
Aluminium 7075 Pipe schedules indicate wall-thickness configurations associated with nominal pipe sizes. For Aluminium 7075 seamless pipe, the applicable wall thickness and dimensional requirements should be confirmed against the relevant product and dimensional specification. ASTM B241/B241M covers aluminium-alloy seamless pipe and seamless extruded tube and references ANSI H35.2/H35.2M for standard seamless-pipe sizes.
| Nominal Pipe Size | OD (mm) | Schedule | Wall Thickness (mm) |
|---|---|---|---|
| 1/2" | 21.34 | 40 | 2.77 |
| 3/4" | 26.67 | 40 | 2.87 |
| 1" | 33.40 | 40 | 3.38 |
| 1-1/4" | 42.16 | 40 | 3.56 |
| 1-1/2" | 48.26 | 40 | 3.68 |
| 2" | 60.33 | 40 | 3.91 |
| 2-1/2" | 73.03 | 40 | 5.16 |
| 3" | 88.90 | 40 | 5.49 |
| 4" | 114.30 | 40 | 6.02 |
| 5" | 141.30 | 40 | 6.55 |
| 6" | 168.28 | 40 | 7.11 |
| 8" | 219.08 | 40 | 7.04 |
Other wall thicknesses and non-standard dimensions can be supplied subject to availability, manufacturing capability and applicable specifications.
Aluminium 7075 Pipe Features
Aluminium 7075 Pipes are selected primarily for their high strength and low weight. The alloy provides a high strength-to-weight ratio compared with many other aluminium grades, making it suitable for weight-sensitive engineering applications.
- High strength-to-weight ratio
- High mechanical strength in suitable tempers
- Lightweight construction
- Good machinability
- Suitable for high-performance engineering applications
- Available in different tempers
- Suitable for aerospace and transportation applications
- Suitable for specialized structural and mechanical components
Aluminium 7075 should be selected according to the required strength, corrosion conditions, fabrication method and operating environment.
Aluminium 7075 Pipe Mechanical Properties
The mechanical properties of Aluminium 7075 Pipes depend on the selected temper, product form, dimensions and manufacturing condition. Aluminium 7075-T6 is commonly selected where high strength is required.
| Property | Aluminium 7075-T6 |
|---|---|
| Tensile Strength | Approx. 570 MPa |
| Yield Strength | Approx. 500 MPa |
| Elastic Modulus | Approx. 71.7 GPa |
| Elongation | Approx. 3 - 11% |
Mechanical properties may vary according to product form, temper and applicable specification. The material test certificate should be used to confirm the properties of the supplied Aluminium 7075 Pipes.
Aluminium 7075 Pipe Equivalent Grades
Aluminium 7075 is identified using internationally recognized alloy and material designation systems. These designations help identify the material during procurement, engineering and certification.
| Designation | Aluminium 7075 |
|---|---|
| Aluminium Association | 7075 |
| UNS | A97075 |
| Common Temper | 7075-T6 |
Material equivalency should be confirmed against the applicable product specification before replacing one designation with another.
Aluminium 7075 Pipe vs Other Aluminium Grades
Aluminium grades are selected according to strength, corrosion resistance, machinability, weldability and fabrication requirements. Aluminium 7075 is primarily chosen when high strength and weight reduction are key requirements.
| Grade | Main Characteristics | Typical Applications |
|---|---|---|
| Aluminium 7075 | Very high strength and high strength-to-weight ratio | Aerospace, high-performance engineering and structural applications |
| Aluminium 6061 | Good strength, corrosion resistance, machinability and weldability | General engineering, fabrication and transportation |
| Aluminium 6063 | Good extrudability, surface finish and corrosion resistance | Architectural and extrusion applications |
| Aluminium 5052 | Good corrosion resistance and formability | Marine and general fabrication applications |
Aluminium 7075 Pipe Applications
Aluminium 7075 Pipes are used in applications where high strength, low weight and performance are important. The alloy is particularly suitable for specialized engineering and weight-sensitive components.
Aerospace Components
Used in selected aerospace components where high strength and low weight are important.
High-Strength Engineering
Used for specialized mechanical and engineering components requiring high strength.
Automotive Components
Used in selected high-performance and weight-sensitive automotive components.
Structural Components
Used for lightweight structural components where high mechanical strength is required.
Machinery Components
Used in selected machinery and fabricated components requiring high strength and low weight.
Industries Using Aluminium 7075 Pipes
Kamal Steels supplies Aluminium 7075 Pipes for industries that require lightweight, high-strength aluminium products for specialized engineering, fabrication and manufacturing applications.
Aerospace Industry
Used for selected lightweight and high-strength aerospace components.
Automotive Industry
Used for selected high-performance and weight-sensitive components.
Engineering Industry
Used for specialized machinery, equipment and fabricated engineering components.
Manufacturing Industry
Used in manufacturing applications requiring high-strength, lightweight aluminium components.
Transportation Industry
Used in selected weight-sensitive transportation equipment and components.
Frequently Asked Questions
Aluminium 7075 Pipes are manufactured from Aluminium Alloy 7075 (UNS A97075), a high-strength aluminium-zinc alloy known for its exceptional mechanical strength, fatigue resistance and lightweight properties.
Aluminium 7075 Pipes are supplied according to ASTM B210, ASTM B241, ASTM B345, ASME SB210 and ASME SB241 standards to ensure superior quality and dimensional accuracy.
Aluminium 7075 Pipes provide exceptional strength-to-weight ratio, excellent fatigue resistance, superior machinability, high load-bearing capacity and outstanding dimensional stability for demanding engineering applications.
They are widely used in aerospace, defence, motorsports, automotive engineering, hydraulic systems, tooling, robotics, industrial machinery, marine engineering and heavy structural applications.
Yes. Aluminium 7075 Pipes are available in both seamless and welded forms in various diameters, wall thicknesses, tempers and custom lengths to meet industrial and engineering requirements.
Every Aluminium 7075 Pipe undergoes Chemical Composition Analysis, Mechanical Testing, Tensile Testing, Hardness Testing, Dimensional Inspection, Ultrasonic Testing (UT), Positive Material Identification (PMI) and Visual Examination before dispatch.
Yes. Due to its exceptional strength, lightweight properties, and excellent fatigue resistance, Aluminium 7075 is one of the most widely used aluminium alloys in aircraft structures and aerospace components.
Yes. Aluminium 7075 Pipes can be anodized to improve corrosion resistance, surface hardness and appearance, making them suitable for demanding industrial and outdoor applications.
Yes. Every shipment includes EN 10204 3.1 Mill Test Certificates, complete material traceability, inspection reports, and third-party inspection certificates upon customer request.
Kamal Steels is a trusted exporter and supplier of Aluminium 7075 Pipes, offering certified materials, ready stock, competitive pricing, strict quality control, export-quality packaging, complete documentation, and timely worldwide delivery for industrial and engineering projects.
