Aluminium 6063 Pipes Exporter in India

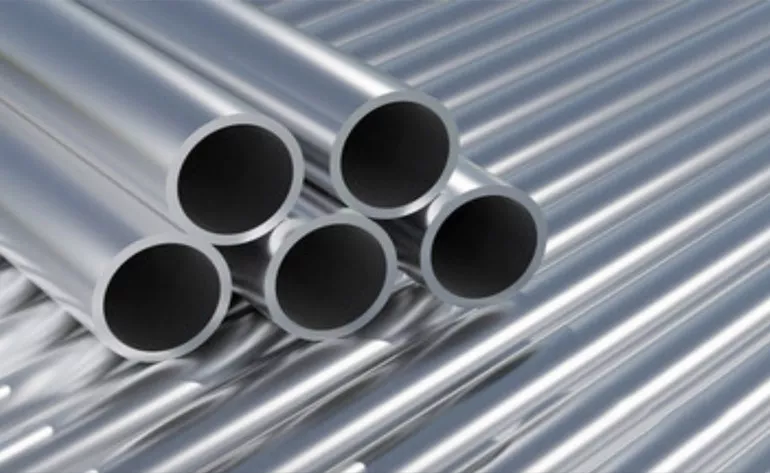

What are Aluminium 6063 Pipes?
Aluminium 6063 Pipes are manufactured from Aluminium Alloy 6063, a heat-treatable aluminium-magnesium-silicon alloy known for its good extrudability, corrosion resistance, weldability and surface finish. The alloy is identified by UNS A96063 and is commonly selected for applications requiring lightweight construction and an attractive surface finish.
Aluminium 6063 contains magnesium and silicon as its principal alloying elements. The alloy offers a useful combination of corrosion resistance, formability, weldability and moderate strength. Its excellent extrusion characteristics make Aluminium 6063 suitable for producing tubular sections and fabricated components in a range of shapes and dimensions.
Aluminium 6063 Pipes are used in applications such as architectural structures, construction, transportation, furniture, HVAC systems, general engineering and decorative applications. Their lightweight construction, corrosion resistance and good surface finish make them suitable for applications where appearance and ease of fabrication are important.
Kamal Steels is a trusted Aluminium 6063 Pipes Exporter and Supplier in India, supplying pipes in different sizes, wall thicknesses, lengths and applicable tempers. We cater to domestic and international requirements and can supply Aluminium 6063 Pipes according to applicable specifications, including ASTM B241 and UNS A96063, subject to the required product specification.
Table of Contents
- Aluminium 6063 Pipe Specifications
- Aluminium 6063 Pipe Size Chart
- Aluminium 6063 Pipe Weight Chart
- Aluminium 6063 Pipe Schedule Chart
- ASTM B241 Aluminium 6063 Pipe
- Aluminium 6063 Pipe Features
- Aluminium 6063 Pipe Chemical Composition
- Aluminium 6063 Pipe Mechanical Properties
- Aluminium 6063 Pipe Equivalent Grades
- Aluminium 6063 Pipe vs Other Aluminium Grades
- Aluminium 6063 Pipe Applications
- Industries Using Aluminium 6063 Pipes
- Frequently Asked Questions
Aluminium 6063 Pipe Specifications
Kamal Steels supplies and exports Aluminium 6063 Pipes manufactured in accordance with internationally recognized ASTM, ASME, and EN standards. Produced from premium-quality Aluminium Alloy 6063, these pipes offer excellent corrosion resistance, superior surface finish, outstanding extrudability, and excellent weldability. Our Aluminium 6063 Pipes are available in seamless and welded forms with multiple diameters, wall thicknesses, tempers, and custom lengths to meet the requirements of architectural, transportation, marine, structural, and industrial engineering applications.
| Product | Aluminium 6063 Pipes |
|---|---|
| Material Grade | Aluminium Alloy 6063 (UNS A96063) |
| Specifications | ASTM B210, ASTM B241, ASTM B345, ASME SB210, ASME SB241 |
| Pipe Type | Seamless & Welded |
| Outside Diameter | 6 mm to 250 mm |
| Wall Thickness | 0.5 mm to 25 mm |
| Temper | T4, T5, T52, T6 |
| Length | 3 Meter, 6 Meter & Custom Cut Lengths |
| Surface Finish | Mill Finish, Anodized, Polished, Powder Coated |
| Certification | EN 10204 3.1 Mill Test Certificate (MTC) |
Aluminium 6063 Pipe Size Chart
Aluminium 6063 Pipes are available in a range of outside diameters and wall thicknesses for different fabrication and engineering requirements. Standard pipe dimensions can be supplied along with customized sizes, subject to the applicable specification and manufacturing requirements.
| Nominal Pipe Size | DN | Outside Diameter (OD) mm | Outside Diameter (OD) inch | Wall Thickness |
|---|---|---|---|---|
| 1/2" | 15 | 21.34 | 0.840 | As per requirement |
| 3/4" | 20 | 26.67 | 1.050 | As per requirement |
| 1" | 25 | 33.40 | 1.315 | As per requirement |
| 1-1/4" | 32 | 42.16 | 1.660 | As per requirement |
| 1-1/2" | 40 | 48.26 | 1.900 | As per requirement |
| 2" | 50 | 60.33 | 2.375 | As per requirement |
| 2-1/2" | 65 | 73.03 | 2.875 | As per requirement |
| 3" | 80 | 88.90 | 3.500 | As per requirement |
| 4" | 100 | 114.30 | 4.500 | As per requirement |
| 6" | 150 | 168.28 | 6.625 | As per requirement |
| 8" | 200 | 219.08 | 8.625 | As per requirement |
Kamal Steels can supply Aluminium 6063 Pipes in customized outside diameters, wall thicknesses and lengths according to project requirements.
Aluminium 6063 Pipe Weight Chart
The weight of an Aluminium 6063 Pipe depends on its outside diameter, wall thickness and length. The values below are theoretical approximate weights calculated using the nominal density of Aluminium 6063. Actual pipe weight may vary according to dimensional tolerances and manufacturing conditions.
| Nominal Pipe Size | Outside Diameter (mm) | Wall Thickness (mm) | Inside Diameter (mm) | Approx. Weight (kg/m) |
|---|---|---|---|---|
| 1/2" | 21.34 | 2.77 | 15.80 | 0.44 |
| 3/4" | 26.67 | 2.87 | 20.93 | 0.59 |
| 1" | 33.40 | 3.38 | 26.64 | 0.89 |
| 1-1/4" | 42.16 | 3.56 | 35.04 | 1.20 |
| 1-1/2" | 48.26 | 3.68 | 40.90 | 1.43 |
| 2" | 60.33 | 3.91 | 52.51 | 1.93 |
| 2-1/2" | 73.03 | 5.16 | 62.71 | 3.05 |
| 3" | 88.90 | 5.49 | 77.92 | 3.98 |
| 4" | 114.30 | 6.02 | 102.26 | 5.65 |
| 6" | 168.28 | 7.11 | 154.06 | 9.96 |
| 8" | 219.08 | 7.04 | 205.00 | 12.98 |
Note: Weight values are approximate theoretical values based on nominal dimensions and Aluminium 6063 density. Actual supplied weight should be confirmed from the final dimensions and material test documentation.
Aluminium 6063 Pipe Schedule Chart
Aluminium 6063 Pipes can be supplied with different wall thicknesses depending on the pipe size, application and dimensional requirements. Schedule numbers are commonly used as a reference for nominal pipe wall thickness, while the actual dimensions should be confirmed against the applicable dimensional standard.
| Nominal Pipe Size | Outside Diameter (mm) | Schedule | Wall Thickness (mm) |
|---|---|---|---|
| 1/2" | 21.34 | 40 | 2.77 |
| 3/4" | 26.67 | 40 | 2.87 |
| 1" | 33.40 | 40 | 3.38 |
| 1-1/4" | 42.16 | 40 | 3.56 |
| 1-1/2" | 48.26 | 40 | 3.68 |
| 2" | 60.33 | 40 | 3.91 |
| 2-1/2" | 73.03 | 40 | 5.16 |
| 3" | 88.90 | 40 | 5.49 |
| 4" | 114.30 | 40 | 6.02 |
| 6" | 168.28 | 40 | 7.11 |
| 8" | 219.08 | 40 | 7.04 |
Other wall thicknesses, schedules and customized dimensions can be supplied according to customer requirements and the applicable product specification.
ASTM B241 Aluminium 6063 Pipe
ASTM B241 Aluminium 6063 Pipes are supplied in accordance with the applicable requirements for aluminium-alloy seamless pipe and seamless extruded tube. Aluminium 6063 is identified by UNS A96063 and is commonly selected for applications requiring lightweight construction, corrosion resistance and good fabrication characteristics.
The combination of magnesium and silicon in Aluminium 6063 provides useful strength and heat-treatable characteristics, while the alloy's extrusion performance makes it suitable for tubular products and engineered sections.
| Specification | Details |
|---|---|
| ASTM Standard | ASTM B241 / B241M |
| Aluminium Grade | 6063 |
| UNS | A96063 |
| Alloy Family | Aluminium-Magnesium-Silicon |
| Product Form | Seamless Pipe / Seamless Extruded Tube |
| Available Tempers | O, T4, T5, T6 and other applicable tempers |
Aluminium 6063 Pipe Features
Aluminium 6063 Pipes are valued for their combination of lightweight construction, corrosion resistance, extrusion performance and surface finish. These properties make the alloy suitable for architectural, fabrication and general engineering applications.
- Good extrudability
- Good corrosion resistance
- Lightweight construction
- Good weldability
- Good formability
- Good surface finish
- Heat-treatable alloy
- Suitable for architectural and engineering applications
Aluminium 6063 Pipe Chemical Composition
Aluminium 6063 is an aluminium-magnesium-silicon alloy. Magnesium and silicon are the principal alloying elements, while iron, copper, manganese, chromium, zinc and titanium are controlled within the applicable alloy specification.
| Element | Composition (%) |
|---|---|
| Silicon | 0.20 - 0.60 |
| Iron | 0.35 max. |
| Copper | 0.10 max. |
| Manganese | 0.10 max. |
| Magnesium | 0.45 - 0.90 |
| Chromium | 0.10 max. |
| Zinc | 0.10 max. |
| Titanium | 0.10 max. |
| Aluminium | Balance |
Aluminium 6063 Pipe Mechanical Properties
The mechanical properties of Aluminium 6063 Pipes depend on the selected temper, product form and applicable dimensional specification. The T5 and T6 tempers are commonly selected when higher strength is required compared with the annealed condition.
| Property | Aluminium 6063-T5 | Aluminium 6063-T6 |
|---|---|---|
| Tensile Strength | Approx. 186 MPa | Approx. 241 MPa |
| Yield Strength | Approx. 145 MPa | Approx. 214 MPa |
| Elastic Modulus | Approx. 69 GPa | |
| Elongation | Approx. 8% | Approx. 12% |
Actual mechanical properties may vary according to temper, product dimensions and applicable specification. The material test certificate should be referred to for the properties of the supplied Aluminium 6063 Pipes.
Aluminium 6063 Pipe Equivalent Grades
Aluminium 6063 is identified through established aluminium alloy designation systems. These designations help identify the specified alloy during material selection, procurement and fabrication.
| Designation | Aluminium 6063 |
|---|---|
| Aluminium Alloy | 6063 |
| UNS | A96063 |
| Alloy Series | 6000 Series |
| Common Tempers | T5, T6 |
Aluminium 6063 Pipe vs Other Aluminium Grades
Aluminium grades are selected according to the required combination of strength, corrosion resistance, formability, machinability and extrusion performance. Aluminium 6063 is particularly useful where good extrudability, surface finish and corrosion resistance are important.
| Grade | Main Characteristics | Typical Applications |
|---|---|---|
| Aluminium 6063 | Excellent extrudability, good corrosion resistance and surface finish | Architectural, construction, tubular and decorative applications |
| Aluminium 5052 | Good corrosion resistance, formability and moderate strength | Marine, transportation and fabricated applications |
| Aluminium 6061 | Higher strength, good machinability and weldability | Structural and general engineering applications |
| Aluminium 7075 | High strength-to-weight ratio | Aerospace and high-performance applications |
Aluminium 6063 Pipe Applications
Aluminium 6063 Pipes are used in applications where lightweight construction, corrosion resistance, good extrusion characteristics and surface finish are required. The alloy is particularly suitable for fabricated tubular sections and architectural applications.
Architectural Applications
Used in architectural frames, railings, trim, decorative structures and other lightweight building components.
General Engineering
Used in fabricated tubular sections, mechanical components and lightweight engineering structures.
HVAC Systems
Used in selected heating, ventilation and air-conditioning components where lightweight aluminium is suitable.
Transportation
Used in selected lightweight vehicle and transportation components.
Construction
Used in lightweight frameworks, supports and fabricated construction components.
Industries Using Aluminium 6063 Pipes
Kamal Steels supplies Aluminium 6063 Pipes to industries that require lightweight, corrosion-resistant and easily fabricated aluminium tubular products. Pipes can be supplied in suitable dimensions and tempers according to application requirements.
Construction Industry
Used in lightweight structural, architectural and fabricated components.
Architectural Industry
Used for frames, railings, decorative sections and architectural structures.
Engineering Industry
Used in mechanical components, fabricated sections and general engineering applications.
Transportation Industry
Used in selected lightweight transportation components and structures.
HVAC Industry
Used in selected HVAC components and lightweight fabricated systems.
Frequently Asked Questions
Aluminium 6063 Pipes are manufactured from Aluminium Alloy 6063 (UNS A96063), a heat-treatable aluminium-magnesium-silicon alloy known for its excellent surface finish, corrosion resistance, and outstanding extrudability.
Aluminium 6063 Pipes are supplied according to ASTM B210, ASTM B241, ASTM B345, ASME SB210 and ASME SB241 standards, ensuring superior quality and dimensional accuracy.
Aluminium 6063 Pipes provide excellent corrosion resistance, outstanding surface finish, superior anodizing characteristics, excellent weldability, good formability, lightweight construction and reliable mechanical performance.
They are widely used in architectural structures, window and door frames, railings, transportation equipment, marine applications, furniture manufacturing, heat exchangers, irrigation systems and industrial fabrication.
Yes. Aluminium 6063 Pipes are available in both seamless and welded forms in various diameters, wall thicknesses, tempers, and custom lengths to suit different industrial applications.
Every Aluminium 6063 Pipe undergoes Chemical Composition Analysis, Mechanical Testing, Tensile Testing, Hardness Testing, Dimensional Inspection, Ultrasonic Testing (UT), Positive Material Identification (PMI) and Visual Examination before dispatch.
Yes. Aluminium 6063 has excellent anodizing characteristics and produces a smooth, attractive, and highly durable surface finish, making it ideal for architectural and decorative applications.
Yes. Aluminium 6063 offers excellent resistance to atmospheric corrosion and weathering, making it suitable for outdoor structures, building facades, railings and architectural installations.
Yes. Every shipment includes EN 10204 3.1 Mill Test Certificates, complete material traceability, inspection reports and third-party inspection certificates upon customer request.
Kamal Steels is a trusted exporter and supplier of Aluminium 6063 Pipes, offering certified materials, ready stock, competitive pricing, strict quality control, export-quality packaging, complete documentation and timely worldwide delivery for industrial and architectural projects.
