Stainless Steel 316H Welded Tubes Manufacturer in India

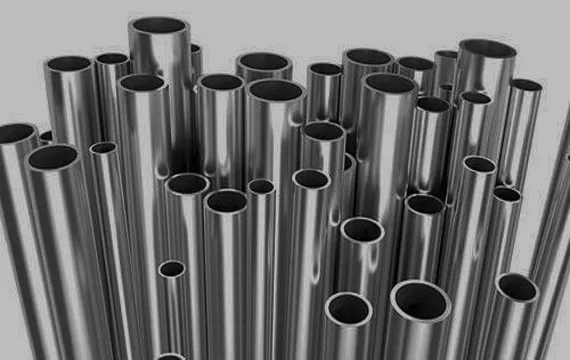

What Are Stainless Steel 316H Welded Tubes?
Stainless Steel 316H Welded Tubes are high-carbon austenitic stainless steel tubes containing chromium, nickel and molybdenum. Grade 316H, identified by UNS S31609, is developed for applications where elevated-temperature strength and corrosion resistance are required.
The higher carbon content of 316H helps provide increased strength at elevated temperatures compared with the standard 316 grade. Its molybdenum addition also improves resistance to pitting and crevice corrosion, making the material suitable for demanding process and high-temperature environments.
Stainless Steel 316H Welded Tubes can be supplied according to applicable ASTM and ASME specifications, including ASTM A249 and other applicable specifications depending on the product form, dimensions and service requirements. Tubes can be supplied in different outside diameters, wall thicknesses, lengths and finishes.
These tubes are used in chemical processing equipment, heat exchangers, petrochemical systems, power generation equipment, process plants and high-temperature industrial applications. The combination of molybdenum-enhanced corrosion resistance and elevated-temperature strength makes 316H suitable for demanding service conditions.
Kamal Steels is a reliable Stainless Steel 316H Welded Tubes Manufacturer and Stockist in India, supplying tubes in different sizes, wall thicknesses, lengths and finishes. We cater to domestic and international requirements with suitable MTC, inspection documentation and export packaging.
Table of Contents
- Stainless Steel 316H Welded Tube Specifications
- Stainless Steel 316H Welded Tube Size Chart
- Stainless Steel 316H Welded Tube Standards
- Stainless Steel 316H Welded Tube Features
- Stainless Steel 316H Chemical Composition
- Stainless Steel 316H Mechanical Properties
- Stainless Steel 316H Welded Tube Applications
- Industries Using Stainless Steel 316H Welded Tubes
- Frequently Asked Questions
Stainless Steel 316H Welded Tube Specifications
Stainless Steel 316H Welded Tubes are available in different dimensions and product conditions according to applicable standards and customer requirements.
| Specification | Stainless Steel 316H Welded Tubes |
|---|---|
| Material | Stainless Steel |
| Grade | 316H |
| UNS | S31609 |
| Tube Type | Welded |
| ASTM Standard | ASTM A249 / Applicable ASTM Specification |
| ASME Standard | ASME SA249 / Applicable ASME Specification |
| Outside Diameter | As per requirement |
| Wall Thickness | As per requirement |
| Schedule | As required |
| Length | Random, Fixed or Customized |
| Finish | Annealed, Pickled, Polished or As required |
Stainless Steel 316H Welded Tube Size Chart
Stainless Steel 316H Welded Tubes are supplied in various outside diameters and wall thicknesses for process and high-temperature applications. Customized dimensions and lengths can also be provided according to project requirements.
| Tube Size | Outside Diameter (mm) | Wall Thickness | Length |
|---|---|---|---|
| 1/2" | 12.70 | As required | As required |
| 3/4" | 19.05 | As required | As required |
| 1" | 25.40 | As required | As required |
| 1-1/2" | 38.10 | As required | As required |
| 2" | 50.80 | As required | As required |
| 3" | 76.20 | As required | As required |
| 4" | 101.60 | As required | As required |
| 6" | 152.40 | As required | As required |
| 8" | 203.20 | As required | As required |
Stainless Steel 316H Welded Tube Standards
Stainless Steel 316H Welded Tubes can be supplied according to applicable ASTM and ASME requirements based on product form, dimensions and intended service.
| Standard | Application / Product Requirement |
|---|---|
| ASTM A249 | Welded austenitic stainless steel tubes for heat exchangers, boilers and condensers |
| ASTM A269 | Seamless and welded austenitic stainless steel tubing for general corrosion-resisting service |
| ASME SA249 | Applicable welded austenitic stainless steel tubing requirements |
| ASME SA269 | Applicable austenitic stainless steel tubing requirements for general service |
Stainless Steel 316H Welded Tube Features
Stainless Steel 316H combines the corrosion resistance associated with the 316 family with higher carbon content intended to support strength in elevated-temperature service.
- Good high-temperature strength
- Excellent general corrosion resistance
- Improved resistance to pitting and crevice corrosion
- Good resistance to chloride-containing environments
- High chromium, nickel and molybdenum content
- Good resistance to many chemical environments
- Suitable for elevated-temperature process equipment
- Good mechanical stability under thermal exposure
- Suitable for heat-transfer and process equipment
- Available in various sizes, wall thicknesses and finishes
Stainless Steel 316H Chemical Composition
The chemical composition of Stainless Steel 316H includes chromium, nickel and molybdenum with a controlled higher carbon range. This alloy combination contributes to corrosion resistance and elevated-temperature performance.
| Element | Composition (%) |
|---|---|
| Chromium | 16.0 - 18.0 |
| Nickel | 10.0 - 14.0 |
| Molybdenum | 2.0 - 3.0 |
| Carbon | 0.04 - 0.10 |
| Manganese | 2.00 max. |
| Silicon | 1.00 max. |
| Phosphorus | 0.045 max. |
| Sulfur | 0.030 max. |
| Iron | Balance |
Stainless Steel 316H Mechanical Properties
Stainless Steel 316H offers a combination of tensile strength, ductility and elevated-temperature performance. The applicable mechanical requirements depend on the product specification, dimensions and material condition.
| Property | Minimum Requirement |
|---|---|
| Tensile Strength | 515 MPa min. |
| Yield Strength | 205 MPa min. |
| Elongation | 40% min. |
| Density | Approx. 8.0 g/cm³ |
Note: Mechanical properties may vary according to product form, dimensions, heat treatment and applicable specification. Final values should be confirmed from the relevant material test certificate.
Stainless Steel 316H Welded Tube Applications
Stainless Steel 316H Welded Tubes are selected for industrial applications requiring corrosion resistance together with reliable performance at elevated temperatures.
Chemical Processing
Used in process equipment and tubular systems exposed to corrosive chemicals and elevated operating temperatures.
Heat Exchangers
Used in heat-transfer equipment requiring corrosion resistance and dependable performance under thermal conditions.
Petrochemical Equipment
Used in selected process equipment and tubular systems operating in demanding industrial environments.
Power Generation
Used in selected high-temperature process and auxiliary equipment.
Thermal Processing
Used in equipment exposed to elevated temperatures and corrosive process conditions.
Industrial Machinery
Used in specialized equipment where corrosion resistance and thermal strength are required.
Industries Using Stainless Steel 316H Welded Tubes
Stainless Steel 316H Welded Tubes are supplied to industries where corrosion resistance and elevated-temperature performance are important for process and equipment reliability.
Chemical Industry
Used in process equipment and tubular systems exposed to chemical and thermal service conditions.
Petrochemical Industry
Used in selected process equipment and high-temperature fluid-handling systems.
Power Industry
Used in selected process and auxiliary equipment requiring heat-resistant stainless steel materials.
Engineering Industry
Used in specialized fabricated equipment operating under demanding thermal conditions.
Heat Treatment Industry
Used in equipment where corrosion resistance and elevated-temperature performance are required.
Industrial Equipment Industry
Used in tubular components and equipment designed for demanding industrial service.
Frequently Asked Questions
Stainless Steel 316H Welded Tubes are high-carbon molybdenum-bearing austenitic stainless steel tubes manufactured using advanced welding technology. They are designed for elevated-temperature applications requiring enhanced creep strength and excellent corrosion resistance.
Our Stainless Steel 316H Welded Tubes are manufactured according to ASTM A249, ASTM A269, ASTM A270, ASTM A554, ASME SA249, and ASME SA269 standards.
These welded tubes offer excellent high-temperature strength, improved creep resistance, superior corrosion resistance, excellent weldability, and long service life in demanding industrial environments.
They are widely used in boilers, heat exchangers, pressure vessels, petrochemical plants, oil refineries, chemical processing facilities, power generation plants, and industrial furnace systems.
Stainless Steel 316H has a higher carbon content than standard SS 316, providing improved creep strength and better mechanical stability during prolonged service at elevated temperatures while maintaining excellent corrosion resistance.
Each tube undergoes PMI Testing, Chemical Analysis, Mechanical Testing, Hydrostatic Testing, Ultrasonic Testing (UT), Eddy Current Testing (ECT), Dimensional Inspection, Surface Finish Inspection, and Visual Inspection.
Yes. Every shipment includes EN 10204 3.1/3.2 Mill Test Certificates, inspection reports, complete material traceability, and third-party inspection certificates upon request.
Yes. Kamal Steels supplies Stainless Steel 316H Welded Tubes in various diameters, wall thicknesses, surface finishes, standard lengths, and custom-cut lengths according to customer specifications.
Yes. We export Stainless Steel 316H Welded Tubes worldwide with export-standard packaging, complete documentation, and timely international delivery.
Kamal Steels offers ASTM-compliant Stainless Steel 316H Welded Tubes with ready stock, certified quality, competitive pricing, stringent quality control, export-standard packaging, complete documentation, and dependable worldwide delivery for critical high-temperature and corrosion-resistant industrial applications.
