Inconel 601 Tubes Supplier in India

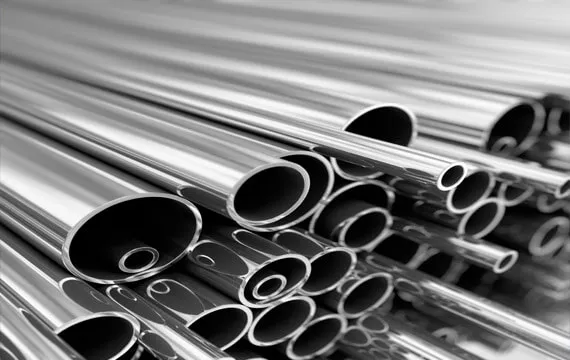

What Are Inconel 601 Tubes?
Inconel 601 Tubes are nickel-chromium alloy tubes designed to provide excellent resistance to oxidation, corrosion and high-temperature environments. Inconel 601, designated as UNS N06601, contains aluminium as an important alloying element that enhances its oxidation resistance at elevated temperatures.
Inconel 601 Tubes are known for their excellent oxidation resistance, high-temperature strength, corrosion resistance, resistance to thermal cycling and good mechanical properties. These characteristics make them suitable for demanding applications where reliable performance is required under high-temperature and corrosive operating conditions.
These tubes are used in furnace equipment, heat treatment systems, thermal processing, chemical processing, petrochemical equipment, power generation and aerospace applications. The appropriate tube size, wall thickness, length and finish are selected according to the specific application and operating conditions.
Kamal Steels is a reliable Inconel 601 Tubes Supplier and Exporter in India, supplying tubes in different sizes, wall thicknesses, lengths and finishes according to customer and project requirements. We also cater to international requirements with suitable export packaging and documentation.
Table of Contents
- Inconel 601 Tube Specifications
- Inconel 601 Tube Size Chart
- Inconel 601 Tube Weight Chart
- ASTM B167 Inconel 601 Tube
- Inconel 601 Tube Features
- Inconel 601 Tube Chemical Composition
- Inconel 601 Tube Mechanical Properties
- Inconel 601 Tube Equivalent Grades
- Inconel 601 Tube vs Other Inconel Grades
- Inconel 601 Tube Applications
- Industries Using Inconel 601 Tubes
- Frequently Asked Questions
Inconel 601 Tube Specifications
Inconel 601 Tubes are nickel-chromium alloy tubes developed for applications requiring excellent resistance to oxidation, corrosion and high-temperature environments. Inconel 601 is designated as UNS N06601 and contains aluminium to enhance its resistance to oxidation at elevated temperatures.
| Specification | Inconel 601 Tubes |
|---|---|
| Material | Nickel-Chromium Alloy |
| Grade | Inconel 601 |
| UNS | N06601 |
| ASTM Standard | ASTM B167 / ASME SB167 |
| Tube Type | Seamless / As specified |
| Outside Diameter | As per requirement |
| Wall Thickness | As per requirement |
| Length | Random, Fixed or Customized |
| Finish | Annealed / Pickled / As required |
Inconel 601 Tube Size Chart
Inconel 601 Tubes are available in different outside diameters and wall thicknesses to meet industrial and project requirements. Standard and customized dimensions can be supplied according to customer drawings and applicable specifications.
| Tube Size | Outside Diameter (mm) | Wall Thickness | Length |
|---|---|---|---|
| 1/4" | 6.35 | As required | As required |
| 1/2" | 12.70 | As required | As required |
| 3/4" | 19.05 | As required | As required |
| 1" | 25.40 | As required | As required |
| 1-1/2" | 38.10 | As required | As required |
| 2" | 50.80 | As required | As required |
| 3" | 76.20 | As required | As required |
| 4" | 101.60 | As required | As required |
| 6" | 152.40 | As required | As required |
Kamal Steels can supply Inconel 601 Tubes in customized outside diameters, wall thicknesses and lengths according to customer drawings and project requirements.
Inconel 601 Tube Weight Chart
The theoretical weight of an Inconel 601 Tube depends on its outside diameter, wall thickness and length. The following values are approximate reference values based on the nominal density of the alloy.
| Outside Diameter (mm) | Wall Thickness (mm) | Inside Diameter (mm) | Approx. Weight (kg/m) |
|---|---|---|---|
| 12.70 | 1.00 | 10.70 | 0.35 |
| 19.05 | 1.50 | 16.05 | 0.82 |
| 25.40 | 2.00 | 21.40 | 1.52 |
| 31.75 | 2.50 | 26.75 | 2.40 |
| 38.10 | 3.00 | 32.10 | 3.40 |
| 50.80 | 3.00 | 44.80 | 4.70 |
| 63.50 | 3.00 | 57.50 | 6.00 |
| 76.20 | 4.00 | 68.20 | 9.60 |
| 101.60 | 5.00 | 91.60 | 15.60 |
Note: The values shown are approximate theoretical weights. Actual tube weight can vary according to dimensions, tolerances, density and manufacturing conditions.
ASTM B167 Inconel 601 Tube
ASTM B167 Inconel 601 Tubes are seamless nickel-chromium alloy tubes supplied for applications requiring resistance to oxidation, corrosion and elevated temperatures. Inconel 601 is identified as UNS N06601 and is particularly suitable for high-temperature industrial environments.
| Specification | Details |
|---|---|
| ASTM Standard | ASTM B167 |
| ASME Standard | ASME SB167 |
| Grade | Inconel 601 |
| UNS | N06601 |
| Product | Seamless Tube |
| Material | Nickel-Chromium Alloy |
Inconel 601 Tube Features
Inconel 601 Tubes are designed for demanding high-temperature environments and provide a combination of oxidation resistance, corrosion resistance and mechanical strength.
- Excellent oxidation resistance
- High-temperature corrosion resistance
- Good mechanical strength at elevated temperatures
- Excellent resistance to carburization
- Good resistance to aqueous corrosion
- Good resistance to thermal cycling
- Good creep and rupture properties
- Good weldability
- Excellent durability in severe environments
- Suitable for furnace and heat-treatment applications
Inconel 601 Tube Chemical Composition
Inconel 601 is a nickel-chromium alloy containing aluminium as an important alloying element. The controlled composition provides the alloy with excellent resistance to oxidation and high-temperature corrosion.
| Element | Composition (%) |
|---|---|
| Nickel | 58.0 - 63.0 |
| Chromium | 21.0 - 25.0 |
| Iron | Balance |
| Aluminium | 1.0 - 1.7 |
| Carbon | 0.10 max. |
| Manganese | 1.00 max. |
| Silicon | 0.50 max. |
| Copper | 1.00 max. |
Inconel 601 Tube Mechanical Properties
The mechanical properties of Inconel 601 Tubes depend on the product condition, dimensions and heat treatment. Typical values are provided as a general reference and should be verified against the applicable specification and material test certificate.
| Property | Typical Value |
|---|---|
| Tensile Strength | Approx. 650 MPa |
| Yield Strength | Approx. 300 MPa |
| Elongation | Approx. 30% |
| Density | Approx. 8.11 g/cm³ |
| Melting Range | Approx. 1354 - 1413°C |
Note: Actual mechanical properties depend on product form, dimensions, heat treatment and specification requirements. Certified material test reports should be used for final verification.
Inconel 601 Tube Equivalent Grades
| Designation | Inconel 601 |
|---|---|
| UNS | N06601 |
| EN | 2.4851 |
| Trade Name | Inconel 601 |
| Material Type | Nickel-Chromium Alloy |
Inconel 601 Tube vs Other Inconel Grades
Different Inconel grades are selected according to temperature, corrosion resistance, oxidation resistance and mechanical strength requirements. Inconel 601 is particularly suited to high-temperature applications where oxidation resistance is a major consideration.
| Grade | Main Characteristics | Typical Applications |
|---|---|---|
| Inconel 600 | Good corrosion and oxidation resistance | Chemical processing and general high-temperature applications |
| Inconel 601 | Excellent oxidation resistance and high-temperature performance | Furnaces, heat treatment and thermal processing |
| Inconel 625 | High strength with excellent corrosion and pitting resistance | Marine, chemical and oil & gas applications |
| Inconel 718 | Very high strength at elevated temperatures | Aerospace and high-performance engineering |
Inconel 601 Tube Applications
Inconel 601 Tubes are used in applications where excellent oxidation resistance, high-temperature strength and resistance to corrosive environments are required. The alloy is particularly suitable for thermal-processing and furnace-related equipment.
Furnace Equipment
Used in furnace components, radiant tubes, furnace fixtures and other high-temperature tubular assemblies.
Heat Treatment Systems
Used in thermal-processing equipment exposed to repeated heating, cooling and high operating temperatures.
Thermal Processing Equipment
Used in industrial heating systems and components requiring excellent resistance to oxidation at elevated temperatures.
Petrochemical Equipment
Used in selected process equipment exposed to high temperatures and corrosive operating environments.
Chemical Processing
Used in selected chemical equipment where resistance to corrosion and high-temperature conditions is required.
Power Generation Equipment
Used in selected high-temperature components and systems in power-generation applications.
Industries Using Inconel 601 Tubes
Kamal Steels supplies Inconel 601 Tubes to industries requiring nickel-alloy tubing for high-temperature, oxidation-resistant and demanding operating environments.
Heat Treatment Industry
Used by heat-treatment equipment manufacturers for furnaces, heating systems and high-temperature tubular components.
Industrial Furnace Industry
Used in industrial furnaces and thermal-processing equipment operating at elevated temperatures.
Chemical Processing Industry
Used in selected process equipment requiring resistance to corrosive and high-temperature environments.
Petrochemical Industry
Used in selected process systems and equipment exposed to elevated temperatures and oxidation.
Power Generation Industry
Used in selected high-temperature equipment and components requiring oxidation resistance.
Aerospace Industry
Used in selected aerospace and gas-turbine-related applications requiring high-temperature alloy performance.
Frequently Asked Questions
Inconel 601 Tubes are high-performance nickel-chromium alloy tubes manufactured from Inconel Alloy 601 (UNS N06601 / WNR 2.4851). They are designed for applications requiring exceptional resistance to oxidation, high temperatures, and corrosive environments.
Our Inconel 601 Tubes are manufactured according to ASTM B163, ASTM B167, ASTM B516, ASTM B517, ASME SB163, and ASME SB167 standards.
Inconel 601 Tubes provide exceptional oxidation resistance, excellent carburization resistance, superior high-temperature strength, good creep resistance, excellent weldability, and long service life.
They are widely used in industrial furnaces, heat treatment equipment, radiant tubes, petrochemical plants, aerospace components, gas turbines, heat exchangers, power plants, and thermal processing systems.
Inconel 601 offers outstanding oxidation resistance and mechanical stability during continuous service at temperatures up to approximately 1200°C, depending on the operating environment.
Each tube undergoes PMI Testing, Chemical Analysis, Mechanical Testing, Hydrostatic Testing, Ultrasonic Testing (UT), Eddy Current Testing (ECT), Flattening, Flaring, Dimensional Inspection, and Visual Inspection.
Inconel 601 develops a protective oxide layer that provides exceptional resistance to oxidation, thermal cycling, and high-temperature scaling, making it ideal for furnace and heat treatment equipment.
Yes. Every shipment includes EN 10204 3.1/3.2 Mill Test Certificates, inspection reports, complete material traceability, and third-party inspection certificates upon request.
Yes. Kamal Steels exports Inconel 601 Tubes worldwide with export-standard packaging, complete documentation, and timely international delivery.
Kamal Steels offers ASTM-compliant Inconel 601 Tubes with ready stock, certified quality, competitive pricing, stringent quality control, export-standard packaging, complete documentation, and dependable worldwide delivery for critical high-temperature industrial applications.
