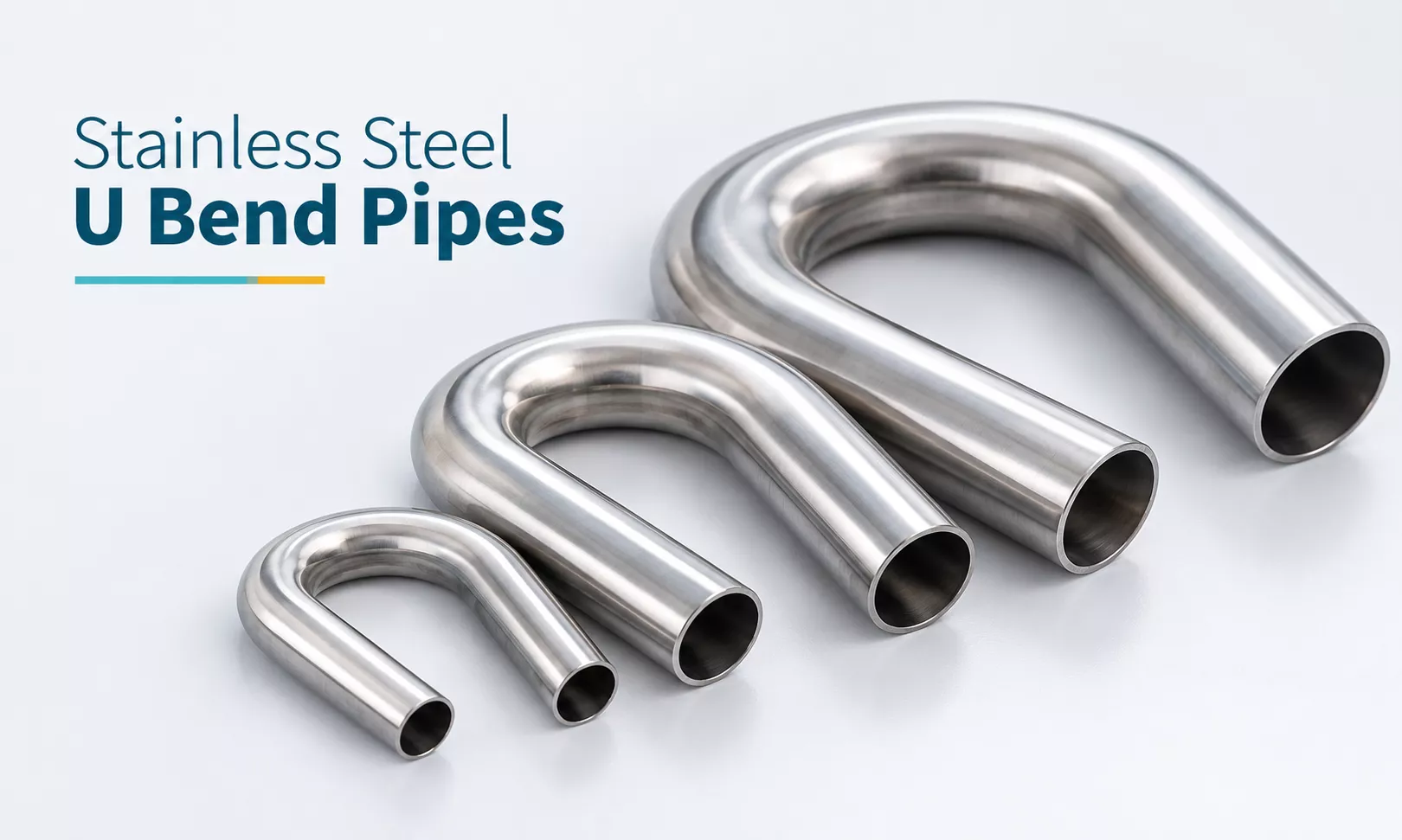

U Bend Pipe Manufacturer in India

U bend pipe specifications are selected according to the piping design, material requirements and installation dimensions. The following table lists the main details to confirm when requesting a quotation.

U bend pipes can differ by their starting pipe construction, bending process, material and final dimensions. The suitable option depends on the application and the required specification.

Share your required construction and drawing with Kamal Steels so the appropriate supply option can be reviewed.

Correct dimensions are important for installation, alignment and connection with adjoining piping or equipment. When requesting a U bend pipe, confirm the following measurements.

If the U bend is required for a heat exchanger or a specific equipment assembly, sharing the equipment drawing or tube layout helps clarify the required dimensions.

U bend pipes are used where a piping or tube arrangement requires a 180-degree change in direction. The correct material and design must be selected for the operating temperature, pressure, fluid and equipment requirements.

• Heat exchangers and condensers: Return flow paths in suitable tube arrangements.
• Boilers and power plants: Applications requiring specified return-bend geometry and materials.
• Oil and gas: Selected process and utility piping applications.
• Chemical and petrochemical plants: Systems requiring materials suitable for the process medium.
• HVAC and refrigeration: Equipment and pipe arrangements designed for the operating conditions.
• Marine and water treatment: Applications where material compatibility and corrosion resistance are important.

Material selection should account for corrosion exposure, operating temperature, pressure, mechanical requirements and compatibility with the process fluid. Confirm the required grade and product specification before placing an order.

Material options and availability must be confirmed for the specific enquiry. Do not select a grade based on corrosion resistance alone; consult the applicable engineering specification.

These terms can refer to different product forms or dimensional arrangements. The drawing and applicable product standard should determine which item is required.

When requesting a quotation, use the product drawing or standard designation wherever possible to avoid confusion between a formed U bend pipe and a separate return-bend fitting.

Provide the following information to help review your U bend pipe requirement and prepare a more accurate quotation.

• Material grade and material specification.
• Nominal pipe size or outside diameter.
• Wall thickness or pipe schedule.
• Required bend angle and bend radius.
• Centre-to-centre dimension and individual leg lengths.
• End preparation and connection requirements.
• Operating temperature, pressure and process medium, where relevant.
• Applicable dimensional and material standards.
• Required quantity, delivery location and delivery schedule.
• Inspection, testing and documentation requirements.

If all dimensions are not available, send your technical drawing or equipment specification for review.

Inspection and documentation requirements vary by material, application, purchase specification and applicable standard. Confirm the required checks and documents before order placement.

Required inspection documents and tests should be agreed at the quotation stage. Availability of a particular test or certificate must be confirmed for the specific order.

If a standard dimension does not meet your equipment or installation requirements, provide the required dimensions and drawing so the feasibility of the requested configuration can be reviewed.

• Specified bend radius and leg length.
• Required pipe diameter and wall thickness.
• Material grade and product construction.
• Specified end preparation.
• Dimensional tolerances and inspection requirements.
• Quantity, delivery schedule and documentation requirements.

Custom requirements are subject to technical review, availability and confirmation before an order is accepted.

Packaging should protect the U bend pipes from handling damage and help maintain material identification during transport. Packaging arrangements should be agreed according to product dimensions, quantity, destination and transport method.

For export or project enquiries, specify the delivery destination, packaging requirements, marking instructions and any documentation required for dispatch. Available packing and delivery arrangements must be confirmed with the quotation.

Contact Kamal Steels with your U bend pipe requirements for a quotation enquiry. Include the material grade, size, wall thickness, bend radius, leg length, quantity and delivery location.

If you have a technical drawing, dimensional sketch or project specification, include it with your enquiry so the required configuration can be reviewed.

Request a U Bend Pipe Quote
